European Electric Wire Rope Hoist 5T 380V Double Speed Lift

Categories Electric Wire Rope Hoist
Brand Name: kuangyuan
Model Number: ND
Certification: CE ISO GOST
Place of Origin: China
MOQ: 1set
Price: USD 3400~7400 sets
Payment Terms: L/C, T/T
Supply Ability: 15000 per years
Delivery Time: 25days
Packaging Details: export packing
Product name: European wire rope hoist
Application: Lifting Goods
Capacity: 5T
Control Method: Pendant +Remote(Customized)
Speed: Double Speed
Standard Lifting Height: 3/6/9/12/18/24/30 Meters
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

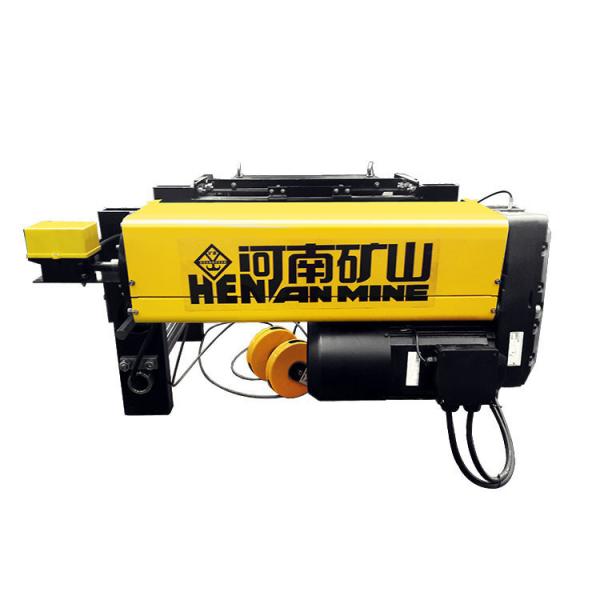

European Electric Wire Rope Hoist 5T 380V Double Speed Lift

European Electric Hoist 5T 380V Wire Rope Hoist Double Speed Lift


ND Model Pendent Line Control Wire Rope Electric Hoist it employs motor of hoisting mechanism and reducer imported from Germany. The integrated and compact design of hoisting motor reducer,reel and limit switch saves space for the user. Modular design increase the reliability of mechanism meanwhile reduces the time and cost for the maintaining.


Lifting motor:

1. Low energy consumption, low noise and environmentally friendly design
2. Non-wear design, long service life
3.The continuous power supply rate reaches 60%, which meets the needs of high-frequency lifting
4. The brake does not contain asbestos, and the service life can reach 1 million times.
5. The brake has a high protection level and meets the requirements of harsh environments.
Technical parameter:
Capacity (kg)Working class ( FEM)Working class ( ISO/GB)Lifting height (m)Lifting speed (m/min)Travel speed (m/min)H Size (mm)C Size (mm)
10004mM76/9/12/180.8/5.05~20245385
12503mM66/9/12/180.8/5.05~20245385
16003mM66/9/12/180.8/5.05~20245385
20003mM66/9/12/181.3/8.05~20245385
25003mM66/9/12/180.8/5.05~20245385
50002mM56/9/12/180.8/5.05~20266495
2mM66/9/120.8/5.02~20530830
