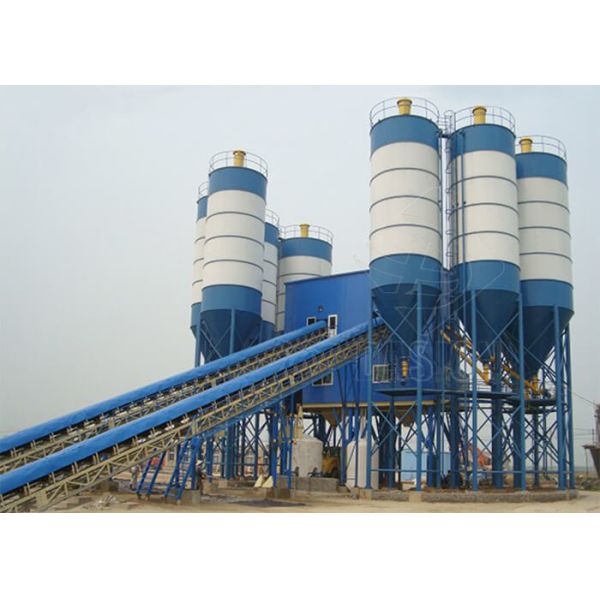

Big Capacity Stationary Concrete Plant / Wet Mix Concrete Plant High Performance

Big capacity belt conveyor 60m3 wet mix machine concrete mixer batching plant

Description of Ready Mix Concrete Plant

The ready mix concrete batching plant is a combinational device used to batch concrete in centralized. There are many different types and components of the concrete batching plants, the basic structure includes: feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments. They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: cement, water, sand, crushed stone, admixture and additive.

Parameters of Ready Mix Concrete Plant

Specification of Important Parts

1. Twin Shafts Concrete Mixer YJS1000

• Mixing blade and lining board use wear-resistance material.
• Driving device and shaft end sealing device using technology of SICOMA, ITALY
• Discharging gate is controlled by hydraulic oil pump.
• Motor Power:37KW
• Planetary gear reducer.
• Conveyor System is conveyor belt.

2. Batching Machine PLD1600

• Batching machine is controlled by pneumatic system.
• Each storage hopper has two discharging gates,improving discharging speed.
• Proportioned Aggregate will be conveyed by conveyor belt with less time and energy.
• Each hopper is weighted individually with three sensors.
• All electrical and pneumatic systems are controlled by computer system,improving the accuracy of weighing.
• 1-8 different kinds of materials can be weighed,such as sand,broken stone, ccobblestone,cement and so on.

3. Cement Silo 50t-300t

• Our cement silo is made of Q235 steel.
• It's equipped with automatic dust removal, butterfly valve, automatic broken arch and the upper and lower level control instrument and other facilities.
• Cement can be dismantled into parts,installed with bolts.Saving transport fees and arrange time.
• Dust catcher has intermittent vibration catcher and pulse dust catcher.
• Electric control system is composed of PL600 weighing instrument,weighing sensors.

4. Electronic control Control System

• Electric system is composed of host computer, display, printer, communication cable, weighing instrument and so on.
• Heavy-current part is separated from weak-current part, so it enhances the ability of anti-jamming.
• Control system has the function of error analysis, automatic checkout.
• Control room is made of steel plate.
