SMD Mid Mount RJ45 Female Port Coupler Modular Jack Female To Female

Speciafications

Drawings

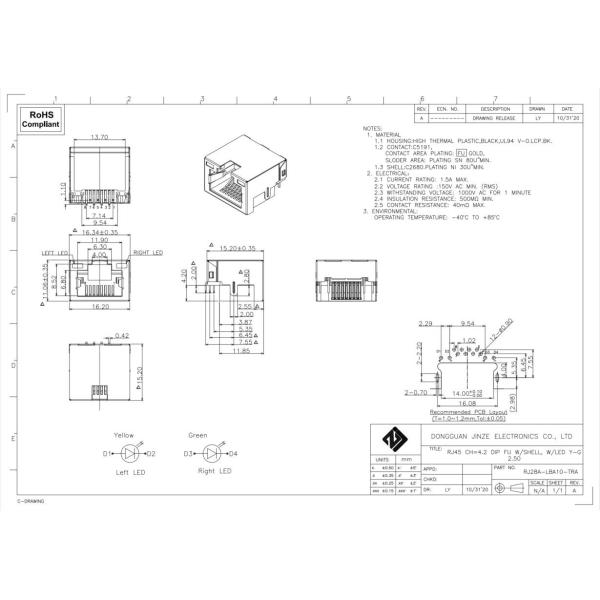

2D Drawings:

RJ28A-LBA10-TRA.pdf, if you need the Drawing, pls download it

What's RJ45?

RJ45, or Registered Jack 45, is a standardized physical connector used primarily for Ethernet networking. It's an 8-position, 8-contact (8P8C) modular plug and socket commonly used for connecting computers, routers, switches, and other networking devices. The RJ45 connector is designed to work with twisted pair cables, such as Category 5 (Cat5), Category 5e (Cat5e), Category 6 (Cat6), and Category 6A (Cat6A) cables.

The connector is often referred to as an "Ethernet jack" or "Ethernet plug" because of its widespread use in Ethernet networks. The RJ45 connector is used to transmit data at speeds ranging from 10 Mbps (10BASE-T) up to 10 Gbps (10GBASE-T), depending on the type and quality of the twisted pair cable being used.

Jinze was established in 2008, Main business is electronic connectors of R&D, manufacturing and marketing. Meantime, core of diversification strategy is that developing 3C electronics (Communication, Consumer Electronics, PC, Note Book) related products. Main products are connectors of USB3.1, USB3.0, USB2.0, HDMI, RJ45, D-Sub, Displayport, and cables ect. In this field, relying on the ability of independent R&D and innovation gradually formed a integrated business model of ODM design, manufacture and marketing. Company hass passed ISO9001 2015, ISO14001 2015, QC080000, IATF16949 2016, UL ect. Choosing Jinze is your wise choice, and we will provide you with high-quality services.
