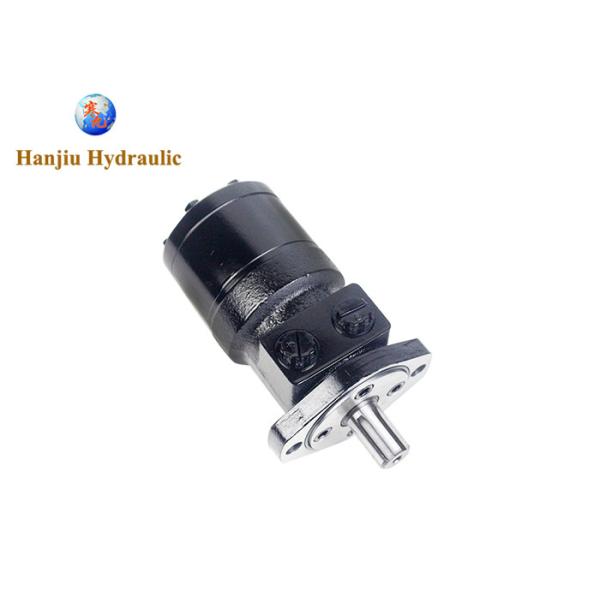

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port

Categories Orbit Hydraulic Motor
Brand Name: Hanjiu
Model Number: BMRS-250-H2-S-S
Certification: ISO9001
Place of Origin: China
MOQ: 100 units
Price: 42 usd/pc
Payment Terms: T/T
Supply Ability: 100,000 units / Year
Delivery Time: 25 - 35 working days
Packaging Details: Standard export package
Item: Orbit Hydraulic Motor
Model No.: BMRS-250-H2-S-S
Displacement: 250 ml/r
Flange: 2 bolt
Shaft: 1'' 25.4mm
Port: 7/8-14 O-ring
Rotation: Left and Right
Speed: 240 / 300 rpm
Torque: 390 / 490 / 640 Nm
Flow: 60 / 75 lpm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port


Quick Review:

BMRS Series Orbit Hydraulic Motors, 250ml/r, SAE 2 bolt, 1'' 25.4mm shaft, 7/8-14 O-ring port


Features:

This motor can replace Danfoss OMR, M+S MR, Eaton Charlynn H,S,T series


Specification:

Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
TypeBMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1085960750600475378310240190155
int.12201150940750600475385300240190
Max. torque (N·m)cont.72100195240300360360390390365
int.83126220280340430440490535495
peak105165270320370460560640650680
Max. output (kW)cont.8.59.512.51312.512.510765
int.9.811.2151514.514139.598
Max. pressure drop (MPa)cont.141417.517.517.516.5131197
int.16.517.52020202017.5151310
peak22.522.522.522.522.522.522.52017.515
Max. flow (L/min)cont.40506060606060606060
int.45607575757575757575
Weight (kg)6.56.76.977.37.688.599.5

Technical data for BMR with 31.75 and 32 shaft:

TypeBMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1250960750600475378310240190155
int.15201150940750600475385300240190
Max. torque (N·m)cont.72100195240300380450540550580
int.83126220280340430500610690690
peak105165270320370460560710840830
Max. output (kW)cont.8.59.512.51312.512.5111097.5
int.9.811.2151514.5141312109
Max. pressure drop (MPa)cont.141417.517.517.517.517.517.513.511.5
int.16.517.520202020202017.515
peak22.522.522.522.522.522.522.522.52117.5
Max. flow (L/min)cont.45506060606060606060
int.55607575757575757575
Weight (kg)6.56.76.977.37.688.599.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.





More Hydraulic Orbital Motor available:






About Hanjiu:

From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
