Light Weight 12V 50A Relay NBC9-A-2 Small Volume Environmental Protection

Categories 12V 50A Relay
Brand Name: NBC
Model Number: NBC9-A-2
Certification: RoHS
Place of Origin: China
MOQ: 100pcs
Price: negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500k per month
Delivery Time: 4weeks
Packaging Details: standard or customization
Key words: 12V 50A Relay
Contact Material: AgSnO2, AgNi
Contact Form: 1A、1B
Switching Power Max.: 22500VA
Switching Voltage Max.: 250VAC
Contact Load Capacity(Resistance): 90A 250VAC, 60A/250VAC
Switching Current Max.: 90A
Weight: Approx.40g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

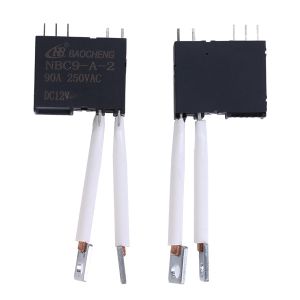

Light Weight 12V 50A Relay NBC9-A-2 Small Volume Environmental Protection

Light Weight 12V 50A Relay NBC9-A-2 Small Volume Environmental Protection


12V 50A Relay Introduce:

The relay is an electrical control device, which can give a specified input quantity and keep it for a long enough time so that the controlled quantity will undergo a predetermined step change in the electrical output circuit. When the input volume drops to a certain level and maintains for a long enough time, it returns to the initial state.


12V 50A Relay Features:

1. Magnetic latching relay, used for the ammeter.
2. Maximum contact switching current: 90 amps.
3. NO/NC can be switched manually.
4. Good shock and vibration resistance.
5. Environmental protection.


12V 50A Relay Technical Rating:

Technical Rating
Insulation ResistanceMin.100MΩ(500VDC)
Dielectric StrengthBetween Contacts2000VAC 50/60Hz Min
Between Coil&Contact4000VAC 50/60Hz Min
Shock ResistanceOperation extremes 10G; Damage limits 100G
Vibration Resistance10Hz~50Hz double amplitude 1.5mm
Pin TypeQuick Terminal
Ambient Temperature﹣40℃~70℃
Relative Humidity85% RH, 40℃
WeightApprox.40g
PackageDust-proof type
