Genlock to Fiber convertor Genlock (CVBS/ BB/ Tri-Level) over Optic Fiber Extender (Boards) with Mini Size, w/SFP module

Genlock over Optic Fiber Extender
Includes 1 x Transmitter and 1 x Receiver. its Mini Size 38 x 93 mm.
It transmits the Genlock signal over an Optic Fiber Cable to a Long distance
of 20 Kilometers, the Operator can use a black burst or tri-level
central timing reference signal to synchronize the video output for the
production systems in the remote location. This ensures the live-streaming event has seamless audio and video for the highest viewing
experience possible.

Analog Video / GL

Number, 1 Ch
connector: 1 x BNC, 1 x SMA for Choice
Standard: PAL, SECAM, NTSC, Tri-level ( Bi / Tri-level auto-sense )
Impedance: 75 Ω
Bandwidth: > 5.8 MHz at +/- 0.2dB
Differential Gain/ Phase < 1%, < 1°
Group delay: < 10 ns
SNR: > 67 dB (CCIR567)

Optical:
Wavelength: 1310nm
Connector: 1 x LC
Datarate: 1000 Base
Output Power: -10~-3db
Rx Sensi:<-24db
Support Fiber Type: 9/125u single-mode
Estimated Distance: 0~20 Kilometers

Power Supply:
DC 5~12V
Connector: 2.54 connector

Board Size: 38 x 93 mm

Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)

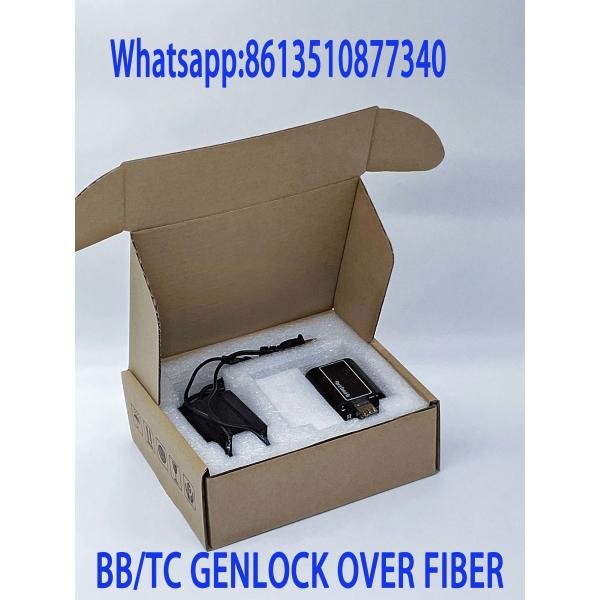

Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Manual.
