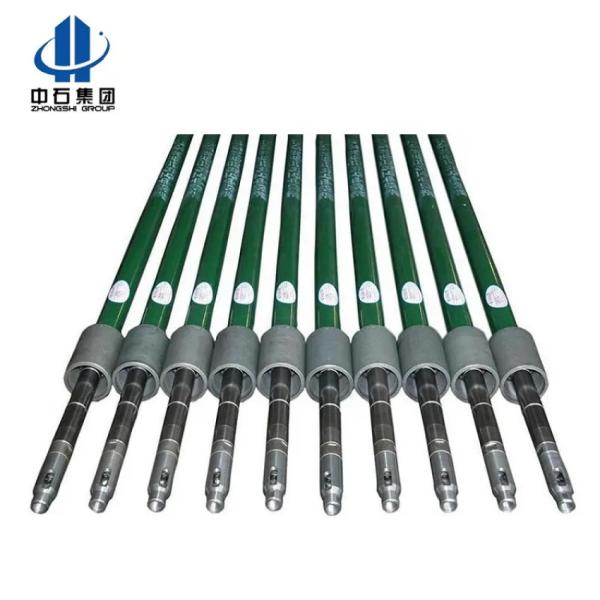

API Standard Sucker Rod Pump Tubing Pump in Oil and Gas for oilfield well drilling

API standard oilfield tubing pump Product description: In the rod - having pump operation, API standard subsurface sucker rod pump is one quite important downhole oil production equipment. which can be divided into tubing pump and rod pump.

Specification table:

operating principle of tubing pumps:The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problems arise,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost.

API standard oilfield tubing pump Technical parameters

Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

Puyang Zhongshi Group Co., Ltd., restructured from SINOPEC in 1997 has 20 years experience on manufacturing petroleum machinery products . The company registered capital is 10 million U.S. dollars, with annual export 30 million U.S. Dollars.

We have competitive price of our main products like: subsurface sucker rod pump, pumping unit, cementing tools, wellhead (Christmas Tree), etc, with certificates of API11AX,API11E,API6A,API5CT,ISO14001 and ISO9001 approved. We have 9 factories, 580 employees, including more than 160 technicians and engineers.

With 20 years manufacturing experience and more than 10 years exporting experience, our main clients include all oilfields in China such as: Zhongyuan, Daqing, Shengli, Changqing, Nanyang, Karamay, etc and we have exported to more than 30 countries abroad such as: Indonesia, Thailand, Myanmar, Russia, Kazakhstan, Venezuela, Peru, Columbia, Canada, America, Sudan, Egypt, Iran, Australia etc.

We would like to cooperate with friends from all over the world with high quality products and service to achieve mutual development .
