| Categories | Oilfield Sucker Rods |
|---|---|
| Brand Name: | Zhongshi |
| Model Number: | sucker rod |
| Certification: | API ,ISO ,QHSE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Delivery Time: | 2weeks |
| Packaging Details: | exported packing |
| Product name: | Alloy Steel Sucker Rod |
| Grade: | D,KD,HY,K,HL |
| Standard: | API 11B |
| Size: | 3/4",1",5/8"-1-1/8" |
| Length: | 25-30ft |
| Package: | Bundle as per API 11B standard |
| Company Info. |
| Puyang Zhongshi Group Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

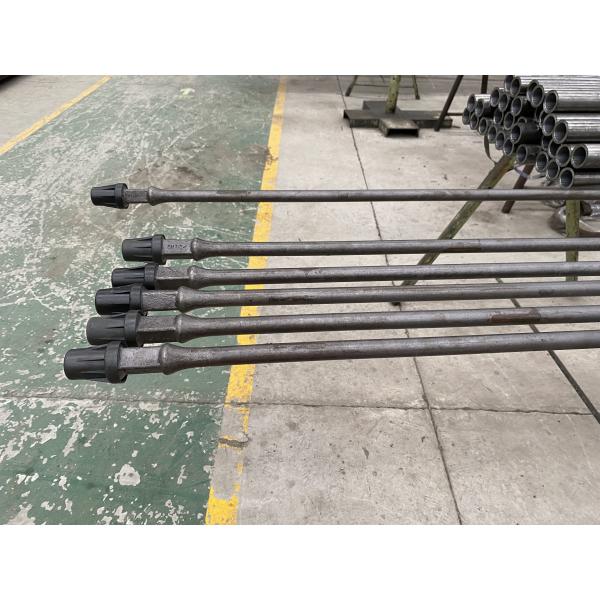

Sucker Rod Introduction:
Sucker rod is an important part of a sucker rod pumping equipment. Sucker Rod connect with coupling to be a rod string, and up through polished rod connection on the pumping unit or PCP motor, down connection on the pump piston or PCP, its role is to ground the reciprocating movement of the pumping unit horsehead suspension point is passed to the downhole pump or pass the rotation of the PCP motor torque to downhole PCP.
Ordinary sucker rod is manufactured according to API Spec 11B which mainly includes grade C and D. Grade H sucker rod is developed to suit for deep well and larger pumps.
Size in (mm) | Rod Body diameter in (mm) | diameter of ext. thread in (mm) | Full size Coupling OD mm (in) | Coupling OD mm (in) | Wrench square W*L mm (in) | Length series m (ft) |
| 5/8 (16) | 5/8 (15.88) | 15/16 (23.81) | 38.10(1.5) | 31.8 (1.25) | 22.2×31.8 (7/8×1-1/4) | 7.62 (25) |
| 3/4 (19) | 3/4 (19.05) | 1-1/16(26.99) | 41.28(1.625) | 38.1 (1.5) | 25.4×31.8 (1×1-1/4) | 9.14 (30) |
| 7/8 (22) | 7/8 (22.23) | 1-3/16 (30.16) | 46.0(1.812) | 41.3 (1.625) | 25.4×31.8 (1×1-1/4) | 0.6 (2), 1 (3) |
| 1 (25) | 1 (25.40) | 1-3/8 (34.93) | 55.6(2.187) | 50.8 (2) | 33.3×38.1(1-5/16×1-1/2) | 2 (6), 3 (10) |
| 1-1/8 (28) | 1-1/8 (28.58) | 1-9/16 (39.7) | 60.33(2.375) | 57.2 (2.25) | 38.1×41.3 (1-1/2×1-5/8) |
Mechanical Properties of Sucker Rods:
| Grade | Min Yield strength 0.2% offset M Pa (psi) | Tensile strength M Pa (psi) | Elongation δ% | Reduction of area ψ% |
| K | 414 (60, 000) | 621-793(90, 000-115, 000) | ≥13 | ≥60 |
| C | 414 (60, 000) | 621-793(90, 000-115, 000) | ≥13 | ≥50 |
| D | 586 (84, 970) | 793-965 (114, 985-139, 925) | ≥10 | ≥50 |
| KD | 590(85, 000) | 793-965 (114, 985-139, 925) | ≥10 | ≥50 |
| HL | 795(115,000) | 965-1,195(140,000-173,339) | ≥10 | ≥45 |
| HY | 540 (78, 300) | 965-1,195(140,000-173,339) | ≥42 | ≥224 |
|
