| Categories | Pneumatic Air Cylinders |
|---|---|
| Brand Name: | FESTO |
| Model Number: | DSNU-32-150-P-A |
| MOQ: | 1 piece |
| Price: | USD 30-50 |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Plastic bags,Boxes, Cartons |
| Model code: | DSNU-32-150-P-A |
| Part no: | 193992 |
| Pneumatic connection: | G1/8 |
| Material cover: | Wrought aluminium alloy |
| Ambient temperature: | -20°C-120°C |
| Brand: | FESTO |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About Product
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Wide range of variants for customised applications
Technical data
| Stroke | 150mm |
| Piston diameter | 32mm |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Square piston rod |
| Mode of operation | Double-acting |
| Ambient temperature | -20°C-120°C |
| Cushioning length | 14 mm |
| Basic weight for 0 mm stroke | 370.5 g |
| Additional weight per 10 mm stroke | 15.5 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
There are so many models,please contact with me.

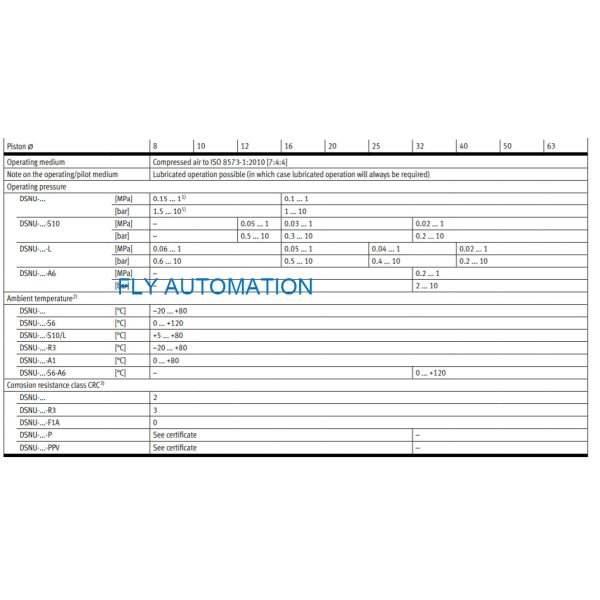

Operating and environmental conditions

|
