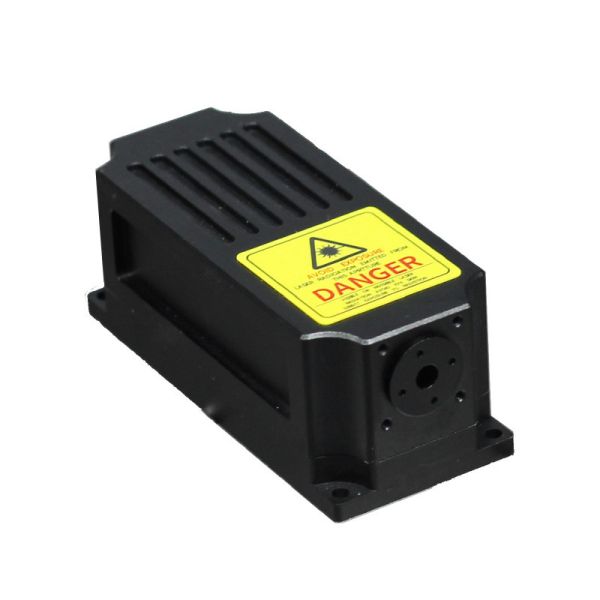

We offer UV diode lasers at the laser wavelength of 375nm with maximum laser power 200mW. These lasers are widely used in scientific, medical, industrial and entertainment applications.
Laser power is stable and adjustable
Protected with overheating and over current
Can be externally controled with high speed modulation
Suitable for scientific research, medical treatment, biological engineering, stage laser show, etc
| Part Number | Wavelength | Laser Power |
| ST-I-DC-375-20 | 375nm | 20mW |
| ST-I-DC-375-50 | 375nm | 50mW |
| ST-I-DC-375-100 | 375nm | 100mW |
| ST-I-DC-375-150 | 375nm | 150mW |
| ST-I-DC-375-200 | 375nm | 200mW |
| Part Number | ST-I-DC-375-xxx |
| Wavelength (nm) | 375 |
| Operation Mode | CW |
| Beam Mode | TEM00 |
| Output Power (mW) | 20/50/100/150/200 |
| Average Power Stability (Over 4hrs) | <1%/<3%/<5% |
| Beam Divergence (full angle, mrad) | 1.2 |
| Beam Diameter at Aperture (mm) | <1.5 |
| Beam Height from Base Plate | 27 |
| Warm-up Time (min) | <10 |
| Cooling | Air |
| Operation Tem. (oC) | 15-35 |
| Power Supply | ST-IIA(GT1)/ST-OEM-B(GT1) |
| Expected Lifetime (hrs) | 10,000 |
| Laser Head Dimension (mm) | 136x50x47 |
| Laser Head Weight (kg) | 0.5 |
| Power Supply Dimension (mm) | 168x164x80/149x80.5x49 |
| Power Supply Weight (kg) | 1.5/0.5 |
Remarks: 1) In the part number, xxx means laser power in mW or W; 2) Other power levels available upon request; 3) There are 3 average power stabilities for all lasers and default is 5%; 4) There are 2 types of power supplies: integrated and OEM. The power input of integrated is 110V-220VAC and the power input of OEM is 12VDC.
|   |
