| Categories | Integrated Circuit IC Chip |
|---|---|
| Brand Name: | IOR |
| Model Number: | IRFP064NPBF |
| Certification: | ROHS |
| Place of Origin: | CHINA |
| MOQ: | Smallest packaging/contact us |
| Price: | negotiate |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Delivery Time: | 2-3 working days |
| Packaging Details: | 25PCS/Standard Package |
| Condition: | New&original |
| Shipping by: | DHL\UPS\Fedex\EMS\HK Post, DHL, UPS, TNT, TNT or EMS |
| Warranty: | 180 Days |
| More details: | Contact us |

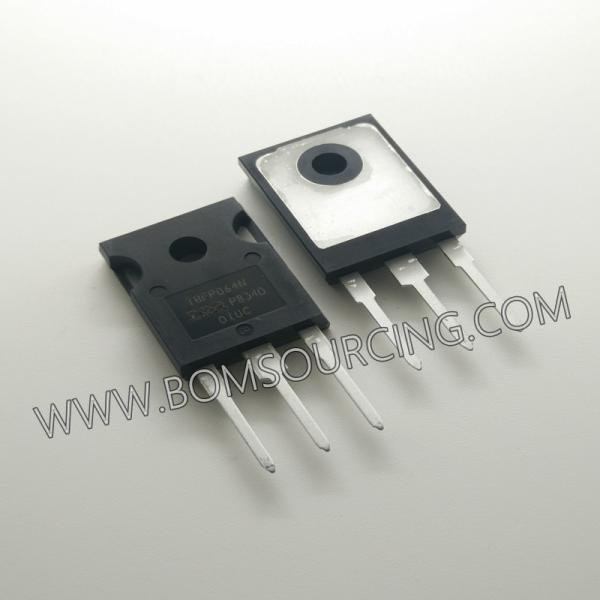

IRFP064NPBF IRFP064N N-Channel MOSFET 55V 110A (Tc) 200W (Tc) Through Hole TO-247AC
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 59A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 170nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4000pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Operating Temperature | -55°C ~ 175°C |
