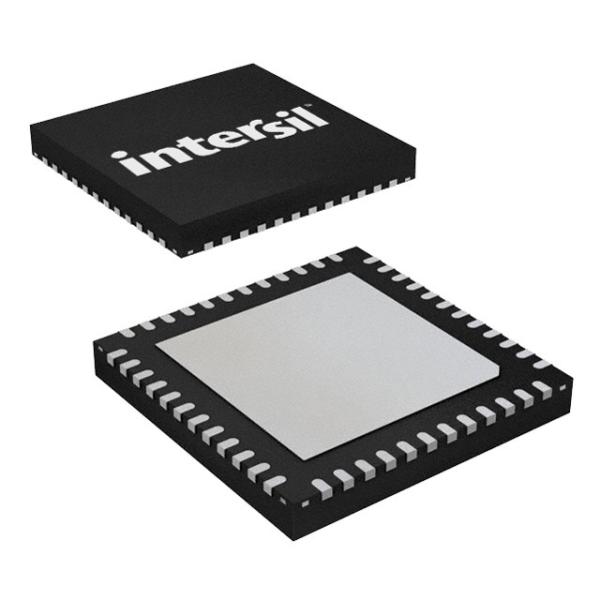

ISL6364CRZ Dual 4Phase + 1Phase PWM Controller Integrated Circuit Chip for VR12/IMVP7 Applications

Dual 4-Phase + 1-Phase PWM Controller for VR12/IMVP7 Applications

Absolute Maximum Ratings

VCC, VR_RDY, VR_RDYS. . . . . . . . . . . . . . . . +6V

All Other Pins . . . . . . . . . .GND -0.3V to VCC + 0.3V

Recommended Operating Conditions

Supply Voltage, VCC . . . . . . . . .. . . . . .+5V ±5%

Ambient Temperature ISL6364CRZ . . . . . . 0°C to +70°C

ISL6364IRZ . . . . . . . . . . . . . . . .-40°C to +85°C

Thermal Information

Thermal Resistance (Notes 4, 5) θJA (°C/W) θJC (°C/W)

48 Ld 6x6 QFN Package . . . . . . . . . . . . . . . 27 1.5

Maximum Junction Temperature . . .. . . . . . .+150°C

Maximum Storage Temperature Range . . . . . . .-65°C to +150°C

Pin Configuration
