| Categories | 2835 SMD LED |
|---|---|
| Brand Name: | HuanYu Dream |
| Model Number: | HY-2835B450 |
| Certification: | Rohs |
| Place of Origin: | China |
| MOQ: | 4000pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal,Ali Pay |
| Supply Ability: | 50000pcs/Day |
| Delivery Time: | 7-9 Work Days |
| Packaging Details: | 4000pcs/Reel |
| Type: | 2835 Blue Plant growth SMD LED |
| Wavelength: | 450-455nm |
| Lumen: | 12-14LM |
| Voltage: | 2.9-3.4V |
| Current: | 150mA |
| PPF: | 2.25-2.37μmol/s/W |
| Company Info. |
| Shenzhen Huanyu Dream Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Specifications(Royal Blue 450-455nm)
| Model | Voltage | Current(mA) | LUMINUOUS EFF | PPF(umol/s) | Eff(PPF)(umol/s/W) | PAR(400-700nm)(mW) |
| HY-B450-0.5W | 3.0-3.4 | 150mA | 12-14LM | 1.1 | 2.27 | 282.5 |
| HY-B450-1W | 2.0-2.4 | 300mA | 20-30LM |
Test report

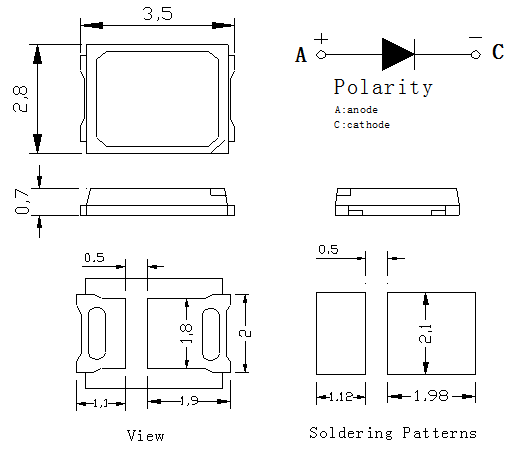

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Company Information
Our Dust-Free workshop is at thousand-level. We have the Automatic die-boding machine,ASM Wire bonding machine, Automatic molding machine, Automatic sorting machine, Automatic taping machine, etc., and Temperature Humidity Cycle test machine, Automatic Tensile testing machine, X-Ray and others inspection machine to assure our products quality.

|
