| Categories | Movable Partition Walls |
|---|---|
| Brand Name: | Bunge |
| Model Number: | BG85 # movable partition wall |
| Certification: | SGS,CE etc. |
| Place of Origin: | China |
| MOQ: | 10 square meters |
| Price: | 90 / 120 dollalrs per square meter |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000square meters per month |
| Delivery Time: | 7 to 20 work days ,it depends on the quantity |
| Packaging Details: | Operable Resturant Partition Walls Room Dividers Precise Welding : Carton package, MDF batten on four section sides ,foam board on both front face. |
| Product name: | Operable Resturant Partition Walls Room Dividers Precise Welding |
| Material: | MDF + Aluminum |
| Color: | Multe Color |
| Width: | 500 / 1230mm |
| Height: | 2000 / 13000mm |
| STC Coeffcient: | 32 / 53db |
| Company Info. |
| Guangdong Bunge Building Material Industrial Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

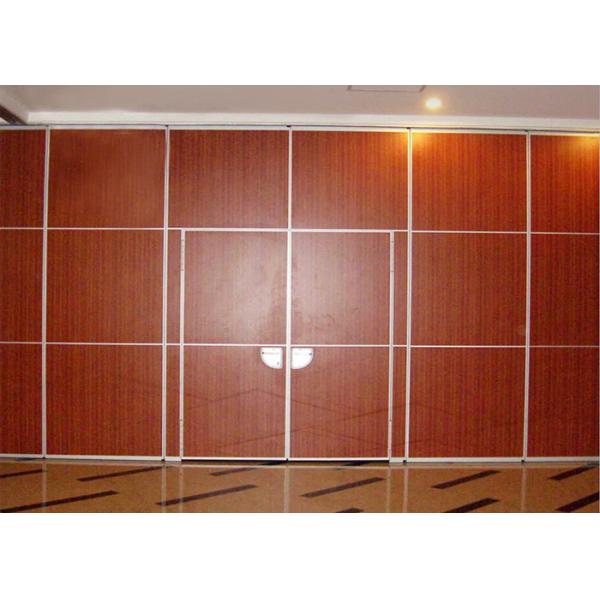

Operable Resturant Partition Walls Room Dividers Precise Welding Hall
Description:
Moveable partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.
Wherever elegant transitions are required from one room to another
and where the emphasis is on transparency in the open-plan design
of living and working environments, fully glazed partitions and
dividers provide an ideal incentive for architectural excellence.
Space and Sound Management with Moveable Wall Systems
BUNGE BG-65# Series | ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 22-35kgs/㎡ | 32db | Aluminium | 22.5mm | 500 / 1230mm | 2000 / 4000mm | 65mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 32db / 35db | |||||||
BUNGE BG-85# SERIES | ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 28-40kgs/㎡ | 38db | Aluminium | 22.5mm | 500 / 1230mm | 2000 / 6000mm | 85mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 38db / 42db | |||||||
BUNGE BG-100# SERIES | ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 35-45kgs/㎡ | 45db | Aluminum | 30mm | 500 / 1230mm | 6000 / 15000mm | 100mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 45db / 52db | |||||||

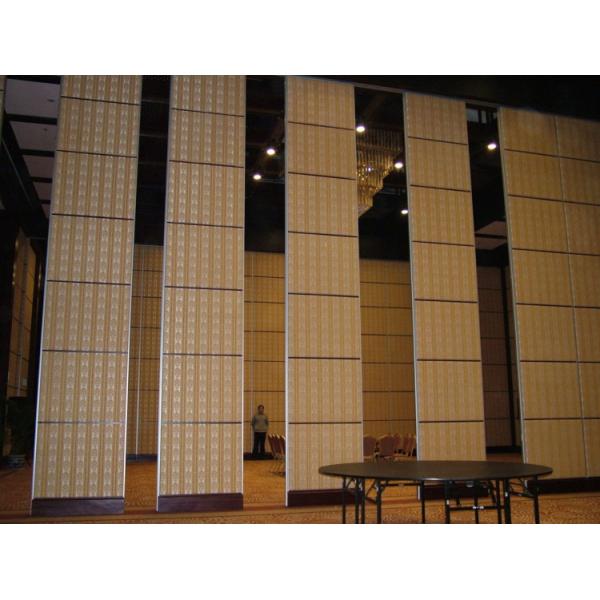

Panel Stacking of Operable Resturant Partition Walls Room Dividers Precise Welding
Specification :
1> sound proof board is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function;
2> The Partition Board is made from high density s/s frame,
special made rubber, excellent sound insulation cotton and finish
board etc. the finish board is flat and hard;
3> The finish board is inserted in the aluminum track, assembled
with multi direction wheels; the board can be stored in may
different ways;
4> It doesn’t need track on the floor, we only hang the track on
the ceilings and it can be at the same plane with the ceiling
decoration. It won’t affect the whole decoration style;
5> Around the board ,there is sound insulation rubber, it can
help to insulate the sound entering;
6> The operation ways is much easier, it’s better than the old
ways which was use spring before;
7> We can add single or double doors on the board for
convenience;
8> We have many different finish to meet customer different
requirement and get different decoration effect.
|
