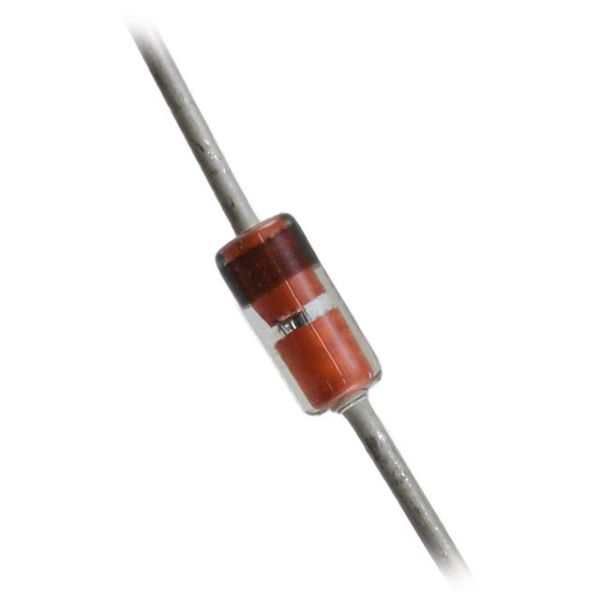

1N4148 FAST SWITCHING DIODE power rectifier diode high voltage rectifier diode

Categories	Electronic IC Chips
Model Number:	1N4148
Certification:	new & original
Place of Origin:	original factory
MOQ:	20pcs
Price:	Negotiate
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9000pcs
Delivery Time:	1 day
Packaging Details:	Please contact me for details
Description:	Diode 100 V 200mA Through Hole DO-35
Non-Repetitive Peak Reverse Voltage:	100 V
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage:	75V
RMS Reverse Voltage:	53V
Thermal Resistance, Junction to Ambient Air (Note 1):	300 K/W
Average Rectified Output Current (Note 1):	150mA
Operating and Storage Temperature Range:	-65 to +175°C

Contact Now

Add to Cart

Company Info.

ChongMing Group (HK) Int'l Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1N4148 FAST SWITCHING DIODE power rectifier diode high voltage rectifier diode

Features

Fast Switching Speed

General Purpose Rectification

Silicon Epitaxial Planar Construction

Mechanical Data

Case: DO-35

Leads: Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Weight: 0.13 grams (approx.)

Maximum Ratings @ TA = 25C unless otherwise specified

Characteristic	Symbol	1N4148 1N4448	Unit
Non-Repetitive Peak Reverse Voltage	VRM	100	V
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	VRRM VRWM VR	75	V
Forward Continuous Current (Note 1)	IFM	300 500	mA
Average Rectified Output Current (Note 1)	IO	150	mA
Non-Repetitive Peak Forward Surge Current @ t = 1.0s @ t = 1.0s		1.0 2.0	A
Power Dissipation (Note 1) Derate Above 25C	Pd	500 1.68	mW mW/C
Thermal Resistance, Junction to Ambient Air (Note 1)	RJA	300	K/W
Operating and Storage Temperature Range	Tj , TSTG	-65 to +175	℃
