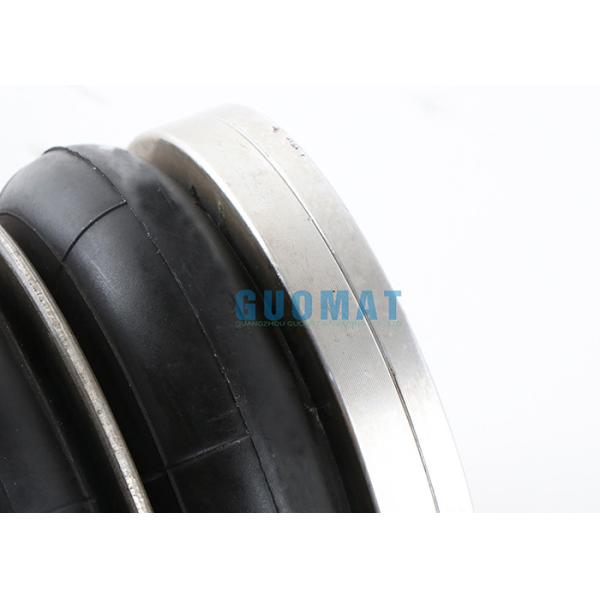

4.5''X3 NORGREN Triple Convoluted Industrial Air Spring PM/31043 Air Bellow With Aluminum Cover Plate

4.5''X3 NORGREN Triple Convoluted Industrial Air Spring PM/31043 Air Bellow With Aluminum Cover Plate

Product Description
Item: Industrial Air Spring
Model Number: 3B4.5X3
Material: Rubber + Aluminum Cover
MOQ: 1pc
Item Name: Double Convoluted Industrial Air Spring
Delivery Time: About 3-7 working days
Payment: L/C,T/T,Western Union,PayPal
Shipment: By air,By sea,By express

Cross Reference Numbers
Firestone Part Number: W01R584035
Firestone Part Number: W01 R58 4035
Firestone Part Number: W01-R58-4035
Firestone Part Number: WO1R584035
Firestone Part Number: WO1 R58 4035
Firestone Part Number: WO1-R58-4035
Contitech Part Number: FT44-15
Contitech Part Number: FT 44-15
Contitech Part Number: FT44-15 CI
Contitech Part Number: FT 44-15 CI
Norgren Part Number: PM/31043
Norgren Part Number: PM 31043
Norgren Part Number: PM31043
Parker Part Number: 9109402
Dunlop Part Number: SP2895
Dunlop Part Number: SP 2895
Dunlop Part Number: 4 1/2''x3
Dunlop Part Number: 4 1/2''X3

PM/31043 NORGREN Air Bellow Technical Data
Model: PM/31043
CylinderØ(inch): 4 1/2''
Air Port: G3/8
Nominal Ø (inch)xconvolutions: 4 1/2''x3
Stroke(mm): 100
Installation Height Min (mm): 100
Recomended Max Working Height(mm): 180
Installation Height Max(mm): 200
Retracting Force to Reach Min Height (N): 140

Important Instruction
Thrust

• The thrust depends on the height of the bellow. When height increases the thrust decreases.
• Before installing the air bellow, check it carefully for any damage it may have suffered from transport or improper storage.
• Do not inflate the air bellow, until it has been secured properly

Clearance

• There must be enough clearance around the air bellow.
• The full surface of the metal parts is to be used to bear the forces.
• Air bellows must be equipped with lateral guides.
• Deflate the air bellows fully before removing.
• Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and welding sparks.

Stops

• To avoid damage when the bellow is compressed or extended mechanical stops at both end positions have to be used.

Norgren other Similar Air Springs

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.
