| Categories | Portable Solar Panels |
|---|---|
| Brand Name: | OEM |
| Model Number: | CS-SC130W |
| Place of Origin: | Guangdong, China |
| Packaging Details: | Carton box Custom packaging can be accepted |
| MOQ: | 100 pieces |
| Cell size: | 125mmx125mm |
| Type: | Sunpower |
| Panel Dimensions: | Fold size 440*560mm |
| Panel Efficiency: | 24% |
| Certificate: | CE, Rohs, LVD |
| Warranty: | 2 years, 2 years |
| Item name: | Foldable Solar panel |
| Solar cells: | Sunpower gen3 |
| Efficiency: | 24% |

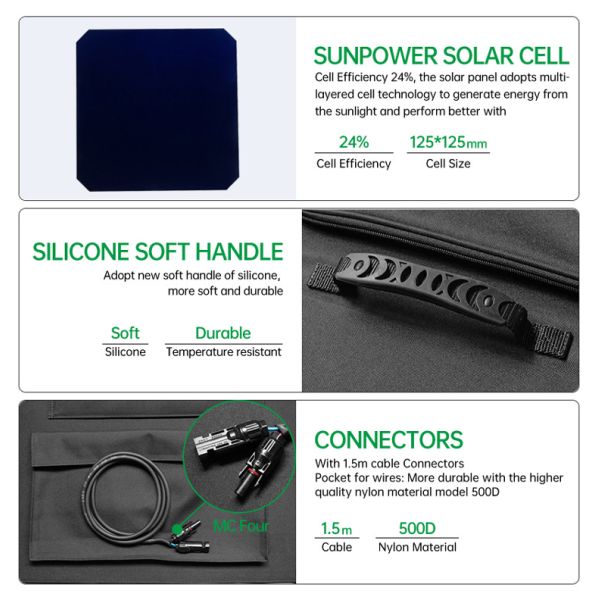

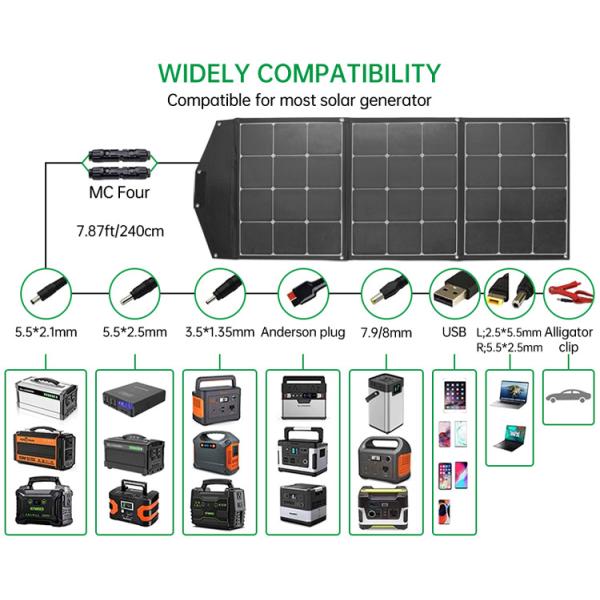

| Connector: | MC four/Andreson/DC/SAE etc |
| Waterproof: | IP64 rated |
| OEM brand: | Available |
| Logo print: | Available |
| Packaging: | Individually packaged, color box |
| Application: | Outdoor camping , travel, hiking etc |

Model | CS-SC90W | CS-SC130W | CS-SC175W | CS-SC220W-1 | CS-SC220W-2 | CS-SC270W |
Solar Cell | SUNPOWER | SUNPOWER | SUNPOWER | SUNPOWER | SUNPOWER | SUNPOWER |
Pm/W | 90 | 130 | 175 | 220 | 220 | 270 |
Vmp/V | 21.6 | 21.6 | 21.6 | 21.6 | 18 | 36 |
Imp/A | 4.16 | 6.02 | 8.1 | 10.18 | 12.2 | 7.5 |
Voc/V | 25.92 | 25.92 | 25.92 | 25.92 | 21.6 | 43.2 |
Isc/A | 4.57 | 6.6 | 8.9 | 11.2 | 13.4 | 8.25 |
Folds | 2 folds | 3 folds | 4 folds | 5 folds | 4 folds | 5 folds |
N.W/kg | 1.8 | 3.0 | 5 | 6.2 | 6.2 | 8.1 |
Expand size (mm) | 1075x560 | 1525 x 560 | 1975x560 | 2425x560 | 1975x675 | 2425x675 |
Folded size (mm) | 440 x 560 | 440 x 560 | 440 x 560 | 440 x 560 | 440x675 | 440x675 |








|
