| Categories | Zirconia Ceramic |
|---|---|
| Brand Name: | MH |
| Model Number: | MH-6485 |
| Certification: | ISO9001 RoHS |
| Place of Origin: | CHINA |
| MOQ: | 100 pcs |
| Price: | USD 0.1-6 PCS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 PCS WEEK |
| Delivery Time: | 15-20DAYS |
| Packaging Details: | CARTON/WOODEN BOX |
| Material: | Zirconia ceramic |
| Color: | White or Black |
| Density: | 5.9g/cm³ |
| Working temperature: | 1400 ℃ |
| OEM,ODM: | Acceptable |
| Sample: | Available |
| Hardness: | 12.3 Gpa |

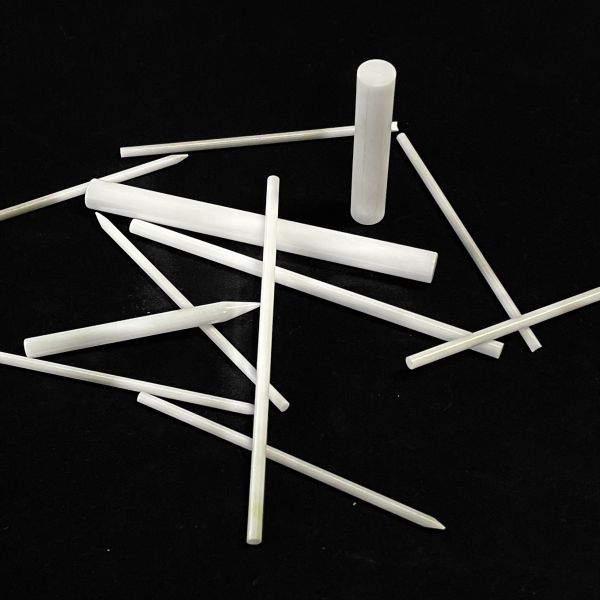

High Quality Polished Zirconia Ceramic Rod
Zirconia Ceramics
Unlike traditional ceramics that tend to be hard and brittle,
Zirconia offers high strength, wear resistance, and flexibility far
beyond those of most other technical ceramics. Zirconia is a very
strong technical ceramic with excellent properties in hardness,
fracture toughness, and corrosion resistance; all without the most
common property of ceramics – high brittleness.
There are several grades of Zirconia available, the most common of
which are Yttria Partially Stabilized Zirconia (Y-PSZ)
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |






|
