| Categories | Low Speed High Torque Hydraulic Motor |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | BMJ-375 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 100 Pieces |
| Price: | 109 usd/pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Payple |
| Supply Ability: | 70000 pieces per year |
| Delivery Time: | 45 - 55 work days |
| Packaging Details: | Box, carton, pallet |
| Product: | Light Duty Gerotor Motor |
| Model No.: | BMJ-375 |
| Displacement: | 375cc |
| Flange: | Wheel mount |
| Shaft: | 25.4mm SAE 6B |
| Port: | G 1/2 |
| Rotation: | Standard |
| Color: | Black |
| Manufacturer: | Hanjiu |
| Brand: | Hanjiu |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Turf equipment Light Duty Gerotor Motor, Wheel Motor 375 ml/r, SAE 6B
Quick review:
Hanjiu BMJ-375 apply to Turf equipment
Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.
Specification:
- Displacement: 375cc
- Flange :wheel Ø60.3*7mm
- Shaft: key 25.4 mm SAE 6B
- Ports: G 1/2
- Drain port: G 1/4

Specification:
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |

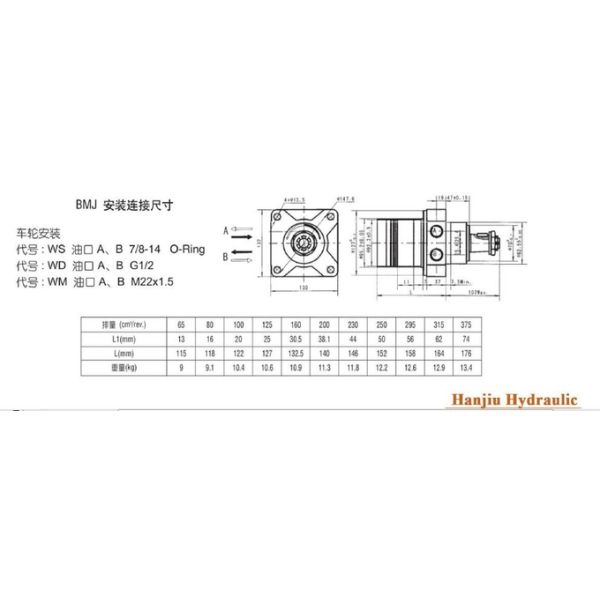

Dimentions:

More hydraulic motors available:

About Hanjiu:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
|
