| Categories | Fiber Optic Splice Sleeve |
|---|---|
| Brand Name: | XXR |
| Model Number: | OFSS-60T |
| Certification: | ISO,RHIOS |
| Place of Origin: | CHINA CD |
| MOQ: | 50000PCS |
| Price: | 0.1-10 USD |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000000 meters per Day |
| Packaging Details: | Plastic bag |
| Band name: | OEM & SINDA ODM |
| model Numberr: | splice sieeve |
| Company Info. |
| Chengdu Xing Xing Rong Communication Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Detaiied product Description
Steel optical fiber connector sleeve, optical fiber cable color protective sleeve
Quick Detail
type: lnsulation sleevin
Application: Optical fiber fusion
Color: Transparent
Product Description
1. Fiber optic splice sleeves are made of PE or EVA material, with preshunk at both ends.
2. The outer tube is heat shrinkable tube made of PE and the innter tube is hot melt tube made of EVA .
3. The fiber optic splice sleeve is designed according to fiber splice tray, its length are 40mm, 45mm and 60mm, also we are able to produce other specifications as per customer's special requirement.
4. The colorful fiber optic splice sleeve usually indicates inner tube, and the outer tube is clear as usual. To choose this kind of sleeve is to identify fibers.

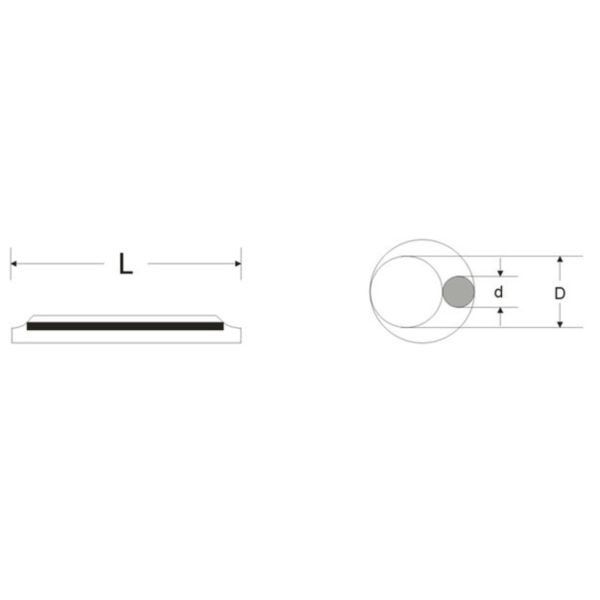

Specifications
| Part No. | Spec. (mm) | Seel rod dia.(mm) | Outer tube L.(mm) | OD after shrinking (mm) | Inner tube L.(mm) | ID (mm) |
| OFSS-60T | 1.0*60 | 1.0 | 60 | 2.5 | 60 | 1.8 |
| OFSS-54T | 1.0*54 | 1.0 | 54 | 2.5 | 54 | 1.8 |
| OFSS-45T | 1.0*45 | 1.0 | 45 | 2.5 | 45 | 1.8 |
| OFSS-40T | 1.0*40 | 1.0 | 40 | 2.5 | 40 | 1.8 |
| OFSS-60T | 1.0*60 | 1.2 | 60 | 2.7 | 60 | 1.7 |
| OFSS-54T | 1.0*54 | 1.2 | 54 | 2.7 | 54 | 1.7 |
| OFSS-45T | 1.0*45 | 1.2 | 45 | 2.7 | 45 | 1.7 |
| OFSS-40T | 1.0*40 | 1.2 | 40 | 2.7 | 40 | 1.7 |
why choose us?our advantages
1. We have get supports from local government
2. One of the famous companies in the industry.
3. With more than xx years experience on R&D of products.
4. With 85,000 square meters workshop and enough capacity.
5. The quality of products has won the praise of domestic and
foreign customers.
|
