Customized Shape Polyamide PA66 GF25 Thermal Break Strip for Doors and Windows

Categories Thermal Break Strip
Brand Name: Polywell
Model Number: I,C,T,CT,HK
Place of Origin: China
Certification: SGS
MOQ: 5000 meters
Price: negotiation
Packaging Details: roll or linear
Delivery Time: 15-20 working days
Payment Terms: 50%T/T before production, 50%T/T before loading
Supply Ability: 100000 meters per day
Color: Black
Application: Structural components
Material: PA66GF25
Length: Customized
Shape: As drawings
Performance: High Strength
UV Resistance: yes
Thickness: Customized
Transport Package: Roll or linear
Type: Other Door & Window Accessories
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized Shape Polyamide PA66 GF25 Thermal Break Strip for Doors and Windows

Western Union Customized Thermal Break Strip for Doors/ Windows/ Machinery

Product Description:

A thermal break is defined as a material with low thermal conductivity placed in an extrusion with the purpose of reducing the flow of thermal energy (heat). In aluminum windows, three types of thermal breaks are used. A standard pocket thermal break has been used in the window industry for decades.

Features:

  • Product Name: Thermal Break Strip
  • Package: Customized
  • Temperature Resistance: ≥240℃
  • Width: Customized
  • Length: Customized
  • Material: PA66GF25

Technical Parameters:

ItemUnitGB/T 23615.1-2009PW-Technical specification
Densityg/cm31.3±0.051.28-1.35
Linear expansion coefficientK-1(2.3-3.5)×10-5(2.3-3.5)×10-5
Vicat softening temperatureºC≥230≥233
Melting pointºC≥240≥240
Testing for tensile cracks-No cracksNo cracks
Shore hardness-80±580-85
Impact strength(Unnotched)KJ/m2≥35≥38
Tensile strength(longitudinal)MPa≥80a≥82a
Elasticity modulusMPa≥4500≥4550
Elongation at break%≥2.5≥2.6
Tensile strength(transverse)MPa≥70a≥70a
High temperature tensile strength(transverse)MPa≥45a≥47a
Low temperature tensile strength(transverse)MPa≥80a≥81a
Water resistance tensile strength(transverse)MPa≥35a≥35a
Aging resistance tensile strength(transverse)MPa≥50a≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Applications:

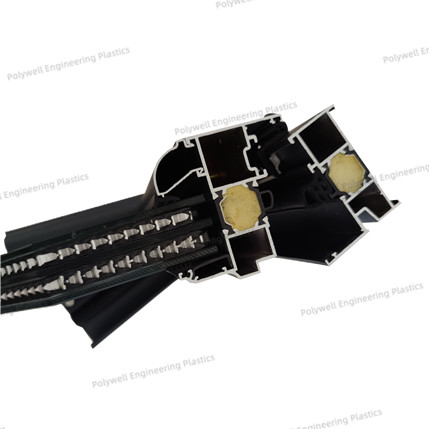

Polyamide strip is one of the most common materials used for years to create thermal breaks in curtain walls, commercial windows, doors, and more. It is installed between the interior and exterior profiles of the windows that forms an insulating barrier between the two.

Support and Services:

Before sales

1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information


During manufacturing

1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents


After Sales

1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support

Packing and Shipping:

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 10-15 working days after receiving the deposit
