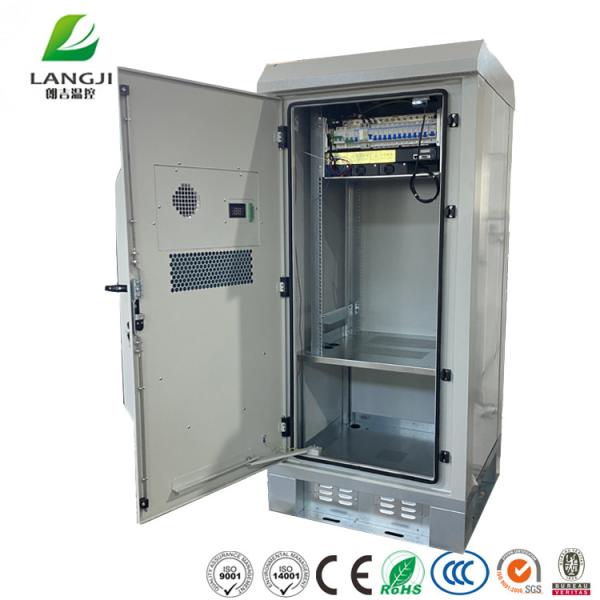

Integrated Metal Waterproof Server Cabinet

1500w Power Solution Integrated Metal Enclosure Outdoor Integrated Cabinet Ip65 Ip55

1.Technical Data Sheet

1.1 Structure
Internal Dimension(H*W*D) :Standard 1427 *650*650mm or any customized size
External Dimension(H*W*D) : Standard 1650*750*750mm or any customized size

1.2 Material:Materials are Galvanized steel with 45mm thickness EPS insulation

1.3 Layout : one compartment equipment cabinet+one compartment

1.4 Door : one door with special lock for outdoor cabinet (support padlock)

1.5 Cable enter method :Bottom φ50*5 or customer requirement.

1.6 Temperature Control Cooling :1500w 220VAC air conditioner

1.7 way of communication:RS485

1.8 Power supply system

1.9 working temperature:-40℃~+55℃

2. Available dimension and material

Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)

Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)

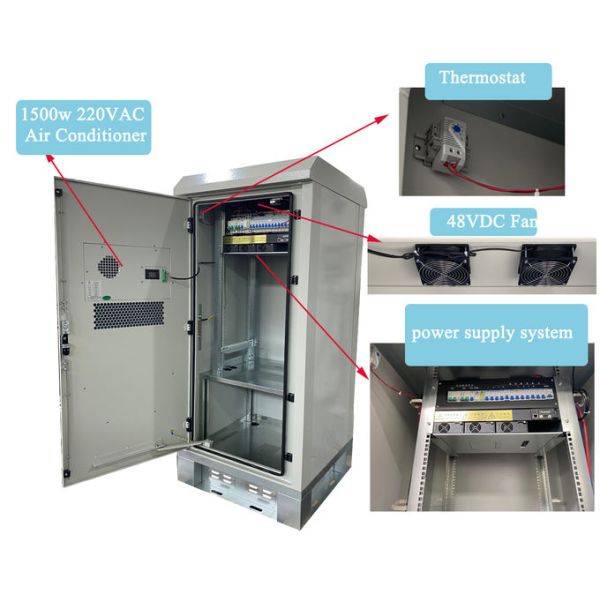

3. Detailed Picture

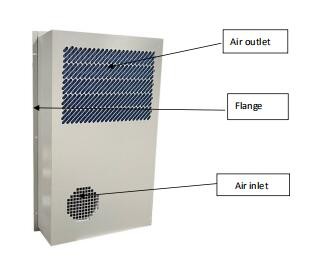

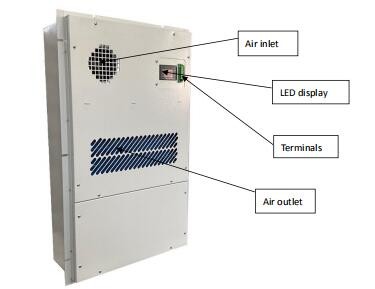

4. Cooing system

1500W 220VAC air conditioner installed on the front door

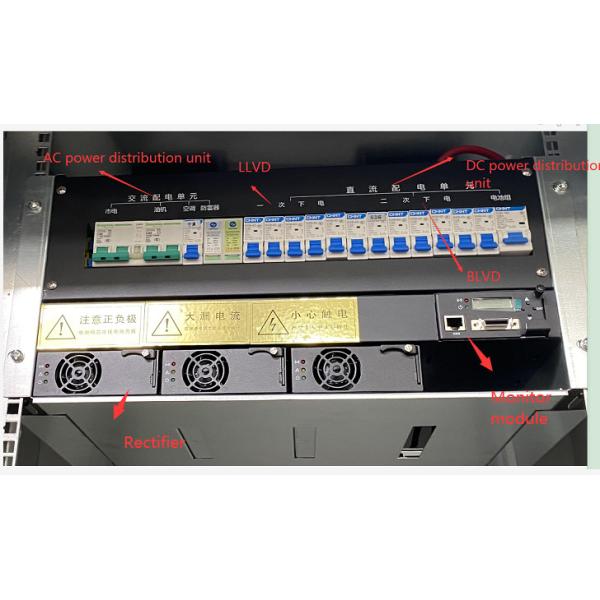

5. Power supply system

5. Company profile

6.Related Product

7.Packaging

8.Exhibition

Suzhou Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is located at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.

Langji company provides full range of temperature control products and solutions for
- Telecommunication

- Data Center
- Base station

- Solar based installations

- Wireless cell sides & switches
- Industry Automation
- Energy Storage

Suzhou Langji Technology Co., Ltd. is always taking the concept of "well-grounded, ambitious and make all efforts to create national brand of precision air conditioner", holding 3 point management strategy that includes technique, force, and service, tracking the market trend and focusing on the development of products. Based on strong technical force, and advanced design ideas, Langji has promoted many models of precision air condition, heat exchanger, and energy-saving products for base station or equipment room, outdoor communication equipment cabinet and thermostatical battery cabinet etc. to meet the diversified needs of the domestic and overseas customers.

Suzhou Langji Technology Co., Ltd. manages the company and production scientifically according to ISO9001 and ISO14001 international management system. The products are certified by CE and CCC, with stable and reliable quality, Langji products are sold in many countries and regions including China, India, Russia, the Middle East, South-east Asia, South America, Africa, Europe and the USA.
