| Categories | DOM Steel Tubes |
|---|---|
| Brand Name: | Torich |
| Model Number: | 4130 |
| Certification: | TS16949,ISO9001 |
| Place of Origin: | China |
| MOQ: | 5tons |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000tons per year |
| Delivery Time: | 5-8 week days |
| Packaging Details: | In bundles |
| Technique: | Cold Drawn |
| Thickness: | 2 - 30 mm |
| Application: | Automotive, Mechanical properties |
| Standard: | ASTM |
| Section shape: | Round |
| Alloy or not: | Non-alloy |
| Surface treatment: | oiled |
| Outer diameter(round): | 0.5 - 24 inch |
| Product name: | 12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing |
| Company Info. |
| Torich International Limited |
| View Contact Details |
| Product List |

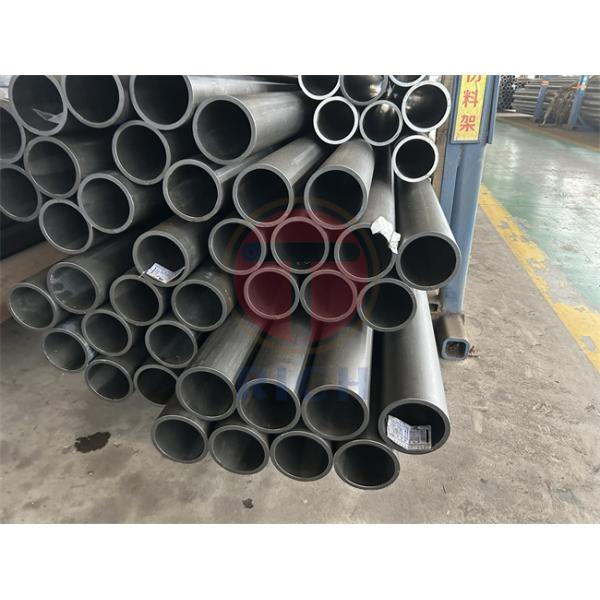

12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
Chemical Composition
| Steel grade | C max. | Si max. | Mn max. | P max. | S max. | Altot min. | |
| Name | Number | ||||||
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.015 | -- |
| E355 | 1.0580 | 0.22 | 0.55 | 1.6 | 0.025 | 0.015 | -- |
Mechanical Properties
| Steel grade | Yield strengtha | Tensile strength | Elongation | |
| Name | Number | ReH | Rm | A |
| min. | min. | min. | ||
| MPa | MPa | % | ||
| E215 | 1.0212 | 215 | 290 to 430 | 30 |
| E235 | 1.0308 | 235 | 340 to 480 | 25 |
| E355 | 1.0580 | 355 | 490 to 630 | 22 |
Features:
1.High tolerance
2.High concentricity
3.Good quality raw material ,Like Baosteel,Zhongtian etc
4. Good service
Delivery Condition
| Designation | Symbol | Description |
| Cold finished (hard) | BK(+C) | Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation |
| Cold finished (Soft) | BKW (+LC) | The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding) |
| Cold finished and stress-relieved | BKS(+SR) | Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
| Annealed | GBK(+A) | The last Cold forming process is followed by annealing in a controlled atmosphere. |
| Normalized | NBK(+N) | The last cold forming process is followed by annealing above the
upper transformation point in a controlled atmosphere. |
Packages:
In bundles or in wooden box packages.
|
