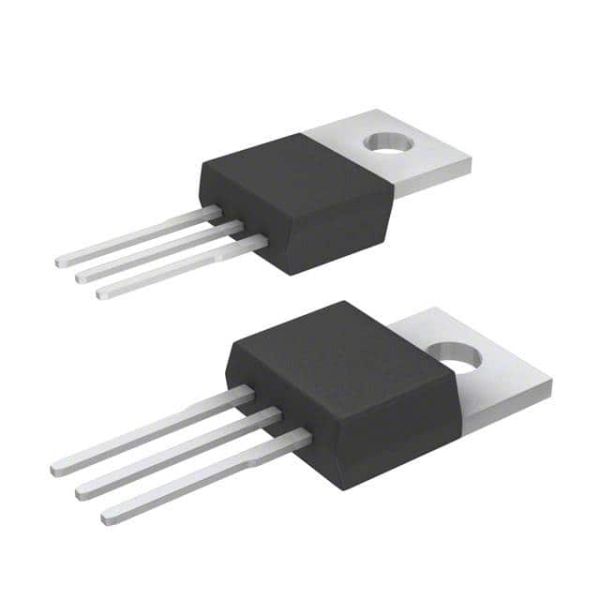

IPP65R190CFDXKSA2

Categories	Single FETs, MOSFETs
Category:	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
FET Feature:	-
Vgs(th) (Max) @ Id:	4.5V @ 700µA
Operating Temperature:	-55°C ~ 150°C (TJ)
Package / Case:	TO-220-3
Gate Charge (Qg) (Max) @ Vgs:	68 nC @ 10 V
Rds On (Max) @ Id, Vgs:	190mOhm @ 7.3A, 10V
FET Type:	N-Channel
Drive Voltage (Max Rds On, Min Rds On):	10V
Package:	Tube
Drain to Source Voltage (Vdss):	650 V
Vgs (Max):	±20V
Product Status:	Active
Input Capacitance (Ciss) (Max) @ Vds:	1850 pF @ 100 V
Mounting Type:	Through Hole
Series:	CoolMOS™ CFD2
Supplier Device Package:	PG-TO220-3
Mfr:	Infineon Technologies
Current - Continuous Drain (Id) @ 25°C:	17.5A (Tc)
Power Dissipation (Max):	151W (Tc)
Technology:	MOSFET (Metal Oxide)
Base Product Number:	IPP65R190
Description:	MOSFET N-CH 650V 17.5A TO220-3

Contact Now

Add to Cart

Company Info.

Beijing Silk Road Enterprise Management Services Co.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

N-Channel 650 V 17.5A (Tc) 151W (Tc) Through Hole PG-TO220-3
