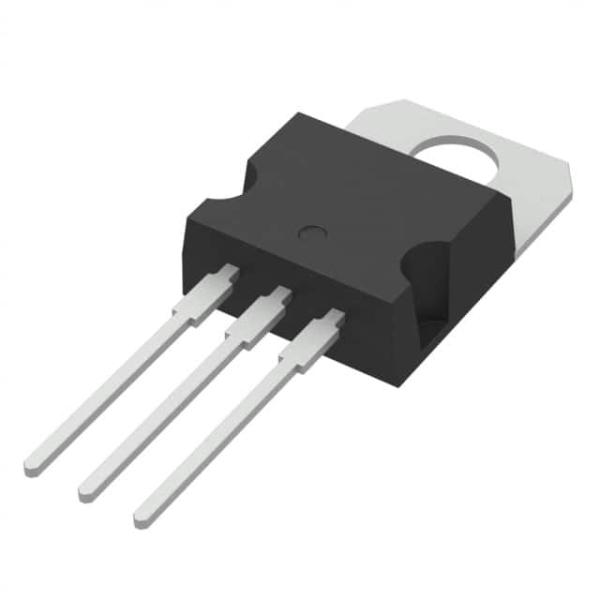

STP9NK60Z

Categories	Single FETs, MOSFETs
Category:	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
FET Feature:	-
Vgs(th) (Max) @ Id:	4.5V @ 100µA
Operating Temperature:	-55°C ~ 150°C (TJ)
Package / Case:	TO-220-3
Gate Charge (Qg) (Max) @ Vgs:	53 nC @ 10 V
Rds On (Max) @ Id, Vgs:	950mOhm @ 3.5A, 10V
FET Type:	N-Channel
Drive Voltage (Max Rds On, Min Rds On):	10V
Package:	Tube
Drain to Source Voltage (Vdss):	600 V
Vgs (Max):	±30V
Product Status:	Active
Input Capacitance (Ciss) (Max) @ Vds:	1110 pF @ 25 V
Mounting Type:	Through Hole
Series:	SuperMESH™
Supplier Device Package:	TO-220
Mfr:	STMicroelectronics
Current - Continuous Drain (Id) @ 25°C:	7A (Tc)
Power Dissipation (Max):	125W (Tc)
Technology:	MOSFET (Metal Oxide)
Base Product Number:	STP9NK60
Description:	MOSFET N-CH 600V 7A TO220AB
