Excavator Slewing Motor Pc40 Pc60-7 Swing Motor Assy 708-7T-00470 Second Hand

Categories Excavator Swing Motor
Brand Name: Belparts
Model Number: pc40 pc60-7
Place of Origin: China
MOQ: 1 PCS
Price: Negotiatied price
Payment Terms: T/T, paypal, trade assurance
Supply Ability: 1000 PCS/month
Delivery Time: Within 2 working days
Packaging Details: Standard shipping package
Part name: Swing Motor
Package: wooden box
Brand: komatsu
Weight: 50KG
Part number: 708-7T-00470
Model: pc40 pc60-7
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Excavator Slewing Motor Pc40 Pc60-7 Swing Motor Assy 708-7T-00470 Second Hand


Excavator Slewing Motor pc40 pc60-7 Swing Motor Assy 708-7T-00470 second hand

Product Paramenters

Appliion:Excavator
Part name:swing motor
Material:Steel
Model:pc40 pc60-7
Part number:708-7T-00470
Payment term:37*36*52
Delivery:56KG
Brand:Belparts

AppliionExcavator
Part nameswing motor
MaterialSteel
Modelpc40 pc60-7
Part number708-7T-00470
Payment term37*36*52
Delivery56KG
BrandBelparts

#Part NoPart NameQty.Price request
1708-7T-00470MOTOR ASS'Y1
1708-7T-00360MOTOR ASS'Y1
1708-7T-00240MOTOR ASS'Y1

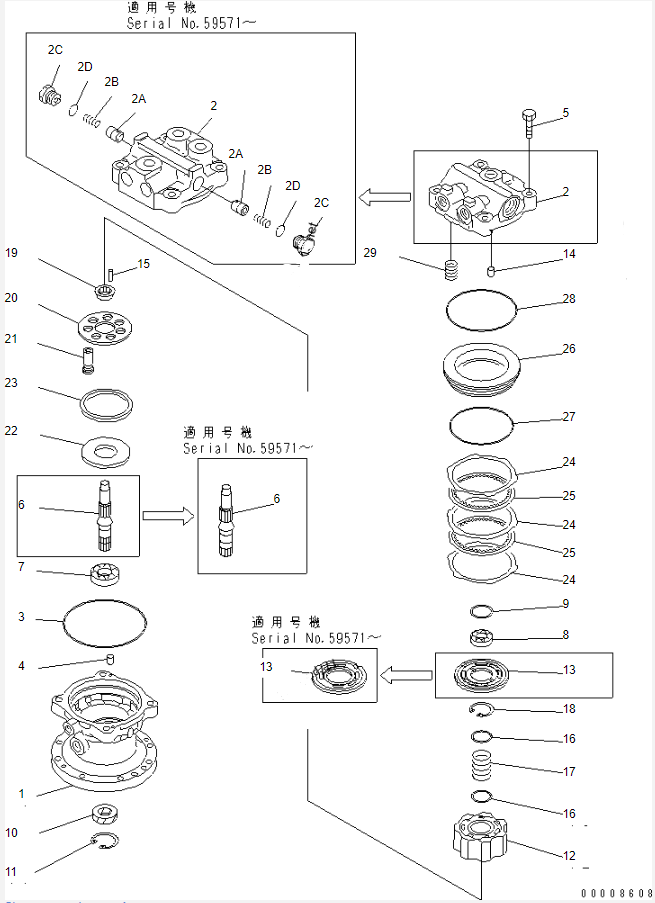

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-02A0A
1708-7T-01210MOTOR SUB ASS'Y1
1708-7T-01040MOTOR SUB ASS'Y1
1(*708-7T-11240), MOTOR1
2(*708-7T-11670)COVER,END1
2(*708-7T-11640)COVER,END1
2A706-73-72420Bushing2
2B706-73-72440Spring2
2C706-73-72430Plug2
2D07002-12434O-RING,(FOR 2-ACTUATER ATTACHMENT)2
3(*708-7T-51210)O-ring1
4(*720-68-19610)PIN,DOWEL2
5(*01010-81250)Bolt4
6(*708-7T-12420)Shaft1
6(*708-7T-12220)Shaft1
7(*708-7T-12240)Bearing1
8(*708-7T-12250)Bearing1
9(*708-7T-05020)SPACER KIT1
9SPACER? 1.6MM1
9SPACER? 1.7MM1
9SPACER? 1.8MM1
9SPACER? 1.9MM1
9SPACER? 2.0MM1
9SPACER? 2.1MM1
9SPACER? 2.2MM1
10708-7T-12230GASKET, SEAL1
1104065-04518RING,SNAP (ITL)1
12(*708-7T-13140)BLOCK, CYLINDER1
13(*708-7T-13290)PLATE,VALVE1
13(*708-7T-13261)PLATE,VALVE1
14(*720-68-19610)PIN,DOWEL1
15(*708-7T-13540)Pin3
16(*708-7T-13530)Washer2
17(*708-7T-13570)Spring1
18(*04065-03815)RING, SNAP1
19(*708-7T-13510)GUIDE,RETAINER1
20(*708-7T-13342)RETAINER,RETAINER1
21(*708-7T-13352)PISTON SUB ASS'Y7
21(*708-7T-13611)PISTON SUB ASS'Y7
22(*708-7T-53420)PLATE,THRUST1
22(*708-7T-13421)THRUST PLATE1
23(*708-7T-13710)Spacer1
24(*708-7T-52512)Plate3
