| Categories | Alloy Steel Tube |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | UNS NO8825 Alloy825 |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 500KGS |
| Price: | NEGOTIABLE |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Delivery Time: | 10-90 Days |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Standard: | ASTM B163 / ASME SB163 |
| Material Grade: | UNS NO8825 Alloy825 |
| Technique: | Hot Rolled,Cold Drawn |
| Thickness: | 1-30mm |
| Outer diameter(round): | 10-2000mm |
| Length: | 1m-12m |
| Application: | Boiler Pipe,Structure Pipe,Oil Pipe,Chemical Fertilizer Pipe,Fluid Pipe |
| Alloy or not: | Is Alloy |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

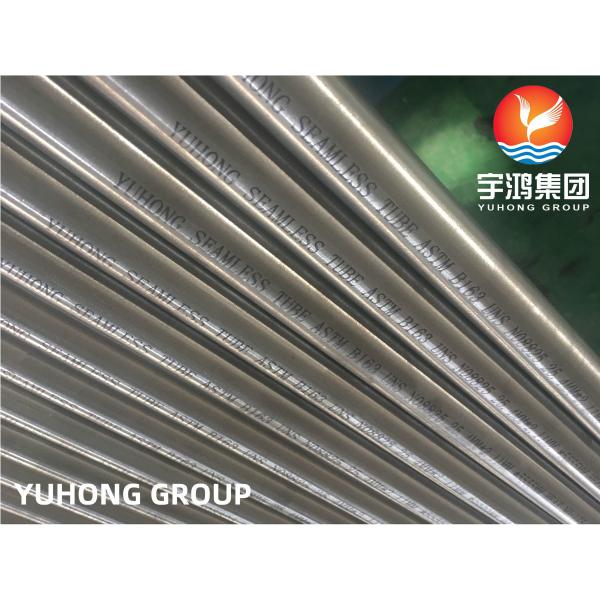

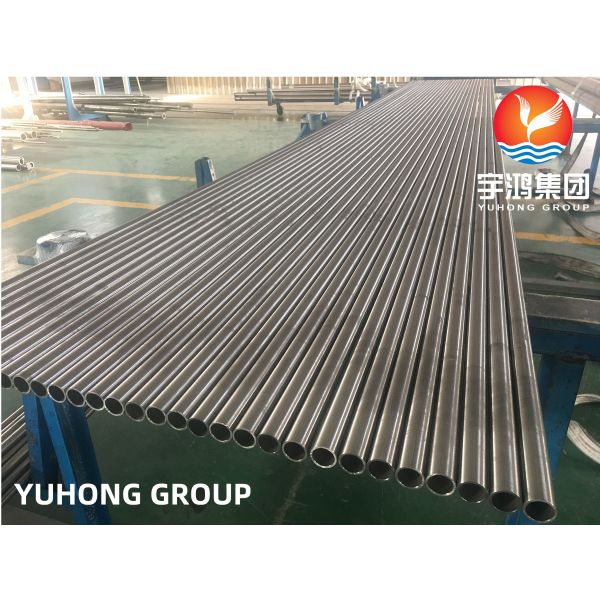

ASME SB163 N08825 Nickel Alloy Steel SMLS Tube:
ASME SB163 N08825 is a specification for nickel alloy steel
seamless tubes. N08825 is the material grade for this specific
alloy, which is also known as Incoloy 825.
Nickel alloy steel tubes are commonly used in high-temperature and
corrosive environments, such as in chemical processing plants, oil
and gas industries, and power generation facilities. The seamless
manufacturing process ensures a uniform and smooth surface, which
enhances the tube's resistance to corrosion and high-pressure
applications.
ASME SB163 is a standard developed by the American Society of
Mechanical Engineers (ASME) that outlines the requirements for
seamless nickel alloy steel tubes. It specifies the dimensions,
mechanical properties, and testing procedures for these tubes.
Overall, ASME SB163 N08825 nickel alloy steel seamless tubes are
designed to withstand extreme conditions and provide excellent
resistance to corrosion, making them suitable for various
industrial applications.
Chemical Composition:
| Ni | 38.0-46.0 |
| Cu | 1.5-3.0 |
| Mo | 1.0 max. |
| Fe | 2.5-3.5 |
| Mn | 22.0 min. |
| C | 0.05 max. |
| Si | 0.50 max. |
| S | 0.03 max. |
| Cr | 19.5-23.5 |
| Al | 0.2 max. |
| Ti | 0.6-1.2 |
Nickel 825 Seamless Tube Mechanical Behaviour:
| Melting Point | 1400℃(2550℉) |
| Tensile Strength (MPa) min | Psi –80000 , MPa – 550 |
| Yield Strength 0.2% Proof (MPa) min | Psi – 32000 , MPa – 220 |
| Elongation (% in 50mm) min | 30% |
