| Categories | Hastelloy Strip |
|---|---|
| Brand Name: | Victory |
| Model Number: | B3 |
| Certification: | CE,ROHS,ISO 9001Product Name |
| Place of Origin: | China |
| MOQ: | 5 Kg |
| Price: | 50 - 999 kilograms $45.00 |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
| Delivery Time: | 5-21 days |
| Packaging Details: | Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case |

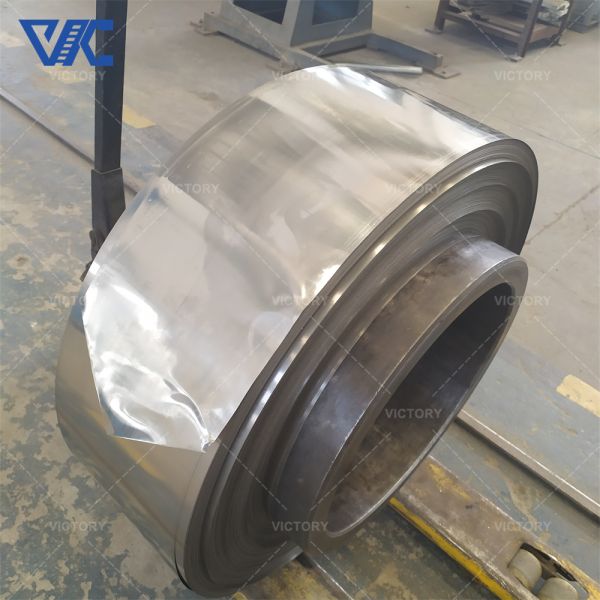

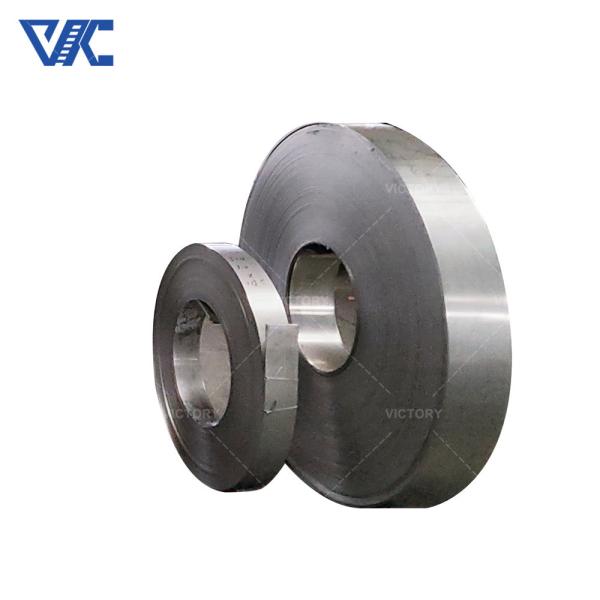

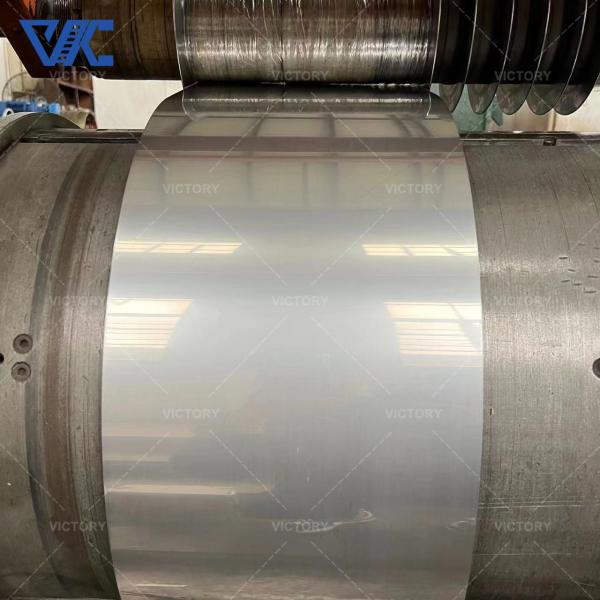

| Product Name: | Hastelloy B3 Strip |
| Material: | Ni Cr Mo |
| Ni (Min): | 55% |
| Resistance (μΩ.m): | 1.12±0.06 |
| Density: | 8.4g/cm3 |
| Powder Or Not: | Not Powder |
| Ultimate Strength (≥ MPa): | 763 |
| Elongation (≥ %): | 67% |
| Size: | Customized Size |
| Application: | Aerospace industry,Chemical industry,Marine industry |
Introduction:
1. The corrosion resistance of Hastelloy B3 Strip is impressive. It can resist the erosion of various corrosive environments such as strong acids, strong alkali, oxidizing media and chlorides.
2. It not only shows excellent corrosion resistance against common
highly corrosive media such as sulfuric acid, hydrochloric acid and
nitric acid, but can also resist oxidation and sulfide erosion at
high temperatures.
3. Hastelloy B3 Strip also has excellent high temperature
resistance.
4. It is able to maintain its stability and strength under high temperature conditions and has good resistance to high temperature corrosion and stress corrosion cracking.
Application:
1. Chemical processing
2. Oil and gas extraction
3. Pharmaceutical Industry
4. Food processing
5. Sewage treatment
6. Aerospace
7. Electronic
8. Marine Engineering
9. Nuclear energy
Parameter:
item | HC-276 | C-22 | C-4 | B2 | B3 | N |
C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
Ni | rest | rest | rest | rest | ≤65 | rest |
Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
B | -- | -- | -- | -- | -- | ≤0.01 |
W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Product | nickel alloy sheet |
Material | Hastelloy/Nickel Alloy strip |
Grade | Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W.Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
Thickness | Customized |
Width | 600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm,
3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
Quality test | we can offer MTC(mill test certificate) |
Delivery time | Usually 7-15 dyas, or upon negotiation |
 |  |
|
