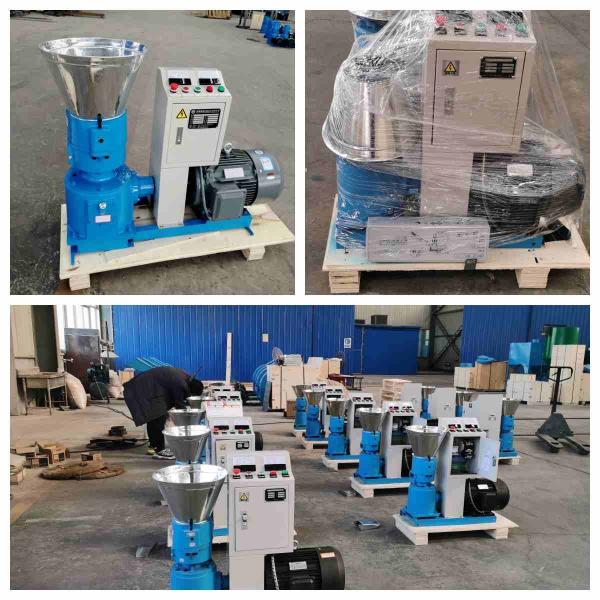

Flat Mold Cattle Feed Pellet Making Machine Pig Goat Animal Food Pellet Machine

CE Flat Mold Poultry Chicken Fish Pig Goat Cattle Cat Animal Feed Pellet Machine Farm Use

Product Description:

The feed machine belongs to a kind of pellet feed processing machinery. The crushed material of corn, soybean meal, soybean, bean cake, crop straw, etc. is driven by the transmission part to drive the pressure roller in the pellet machine and the template to rotate and extrude each other. The material is extruded from the hole of the template and pressed into pellets. Feed processing machinery.

The scope of application of feed pellets:

High-efficiency and high-output feed pellet machine household two-phase electric feed pellet machine chicken, duck, goose, cattle, sheep, rabbit, pig, pigeon, parrot, bird feed pellet machine / pellet machine feed machine.

1.2.0 mm grinding disc is for breeding: parrots, thrushes, finches, and other pet birds. Be customized.

2. The 2.5 mm grinding disc is for breeding: young rabbits, chickens, ducks, geese, pigeons, birds, peacocks, aquatic fish and other small animals.

3.3-4mm discs are used for breeding: rabbits, chickens, ducks, geese, pigeons, peacocks, aquatic fish, etc. (3.0mm.4.0mm for your choice,

4. The 5-6mm grinding disc is for breeding: pigs, cattle, sheep, dogs, pigs and horses (5.0mm and 6.0mm are available for you to choose from 5-6mm specifications)

5.7-12mm (only models above 200 can be equipped with grinding discs of more than 7 meters) - generally used to make bait for large animals such as large birds and mice, which need love (7.0mm, 8.0mm, 9.0mm, 10mm, 12mm for 7-12mm specifications for you to choose)

6. If you have special requirements, please note the hole diameter requirements of the pellet machine grinding disc, and we will install, debug and deliver according to your requirements.

Features:

• Our millstones have many diameters, and different diameters suit different animals.
  A: 2MM millstone is suitable for aquaculture animals, such as shrimp, small fish, crabs, young birds.
  B: 3MM millstone is suitable for aquaculture, young chickens, young ducks, young rabbits, young peacocks, young aquatic products, etc.
  C: 4MM millstone is suitable for breeding, chickens, ducks, fish, rabbits, pigeons, peacock birds, etc.
  D: 5MM millstone is suitable for breeding pigs, horses, cattle, sheep, dogs and other domestic animals.

Technical Parameters:

Model	QD-125	QD-150	QD-210	QD-260	QD-300	QD-400
Power	3KW	4KW	7.5-11KW	15KW	22KW	30KW
Voltage	220V/380V	220V/380V	380V	380V	380V	380V
Capacity (KG/H)	80-100	150-200	250-300	500	900-1100	1500-2000
Weight	80KG	120KG	150KG	190KG	400KG	750KG

Applications:

This animal feed pellet machine can turn a lot of materials into grains, such as corn, weeds, straw, wood chips, peanut shells, minced meat, etc., so it can be used in chicken farms, pig farms, cattle farms and other farms.

1.Wide range of application.
2.There are many kinds of particles that can be produced.
3.Widen the outlet.

Packing and Shipping:

The Packaging and Shipping of Feed Pellet Mill includes:

• The Feed Pellet Mill will be carefully packed in a box.
• The box will be sealed with strong adhesive tape.
• The box will be transported by sea, air, and land.

FAQ:

1: Is the pellet dry in and dry out? Answer: What we usually call dry in and dry out means that the raw materials can be processed directly by putting them in. This is a misunderstanding, and it is not really dry in and dry out, because the raw materials used contain a certain proportion of water. If the overall humidity is between 10%-15%, there is no need to add water, and it can be done directly. If the raw material is very dry, you can spray a little water, a small amount, about 3%6-5%, so good Molding, does not affect storage. It is the feed processed by the feed factory, which also adds water or steam. There is no pellet machine in the country that can process pellets with 100% pure dry raw materials. This is determined by its own principle.

2: Why is the pellet machine always blocked when it is used for the first time? Answer: The difference between the pellet and other machines is that the first time a new machine or a new grinding disc is used, the grinding disc must be ground first. The holes on the grinding disc are drilled out one by one. The hole wall is not smooth. Use it directly. Made of raw materials, the resistance is high and it is easy to block. After repeatedly grinding through the hole of the grinding disc with the abrasive material, the material can be made normally. For specific grinding methods and ingredients, please refer to the manual or the video on the home page.

3: Can single-phase electricity use a pellet machine? Why do some people say that it is easy to jam the machine? Answer: There are only two types of single-phase pellet machine, 120 model and 150 model. If the single-phase power supply is unstable and the power is insufficient, the machine will be stuck. There are many reasons for the machine to be stuck. , For example, if the voltage is unstable, the wiring is too long, the quality of the motor is too poor, and the raw materials are too rough, the machine will be stuck and hold up. The specific situation needs to be analyzed in detail, but if the voltage at home is obviously unstable, then we do not recommend To buy, first see if it can solve the electricity problem or choose a diesel engine model.

4: Does the granulator have any requirements for the size of raw materials? Answer: Grain materials can not be crushed, but forage and straw materials must be crushed before they can be processed. It is best to use powder materials, because the granules made from powder materials are evenly nutritious.
