Name: PCWINMAX H61 Intel PC Motherboard Socket LGA1155 DDR4 DDR3
Brand: pcwinmax
Price: 19.99 USD

Product Details
Company Profile

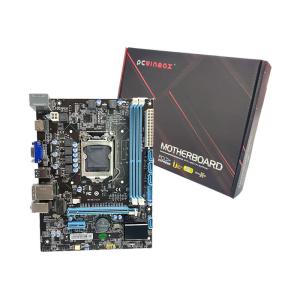

PCWINMAX H61 Intel PC Motherboard Socket LGA1155 DDR4 DDR3

INTEL H61 mainboard 1155 lga motherboard PC motherboard desktop

Product Description:

The PCWINMAX H61 LGA 1155 Motherboard is a highly capable and reliable motherboard specifically designed to support Intel's Core i7, i5, i3, Pentium, and Celeron processors. With its DDR3 memory support andATX form factor, this motherboard offers exceptional performance and compatibility for a range of applications.

Features:

- High Performance: Compatible with a wide range of Intel processors, this motherboard provides excellent performance for both professional and personal computing tasks.
- Versatile Connectivity: With multiple USB ports, LAN support, and expansion options, this motherboard ensures effortless connectivity with various peripherals and devices.
- Superior Audio Quality: The Realtek Audio Codec ALC662 delivers crystal-clear sound output and supports 5.1 sound channels, enabling an immersive audio experience.
- Ample Storage: The 4x SATA2.0 slots provide sufficient storage options for your data, ensuring quick access and efficient data transfer.
- Easy Upgradeability: The PCI-E expansion slots allow for easy graphics card upgrades, empowering users to keep their system up-to-date with the latest technologies.

Parameter:

Product Name	Intel H61-A3C LGA1155 motherboard (Have PS/2 Port)
Processor	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors /Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package. L3 cache varies with CPU.
Chipset	Intel® H61 Express Chipset
Memory	2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory, Support for DDR3 1600/1333 MHz Memory Modules.
Slots	- 1 * PCI Express x16 Slot - 1 * PCI Express x1 Slot
Storage	- 4 * Serial ATA 2.0 devices
Internal I/O Connectors	- 1 * 24-pin ATX Power Connector - 1 * 4-pin ATX 12V Power Connector - 2 * USB Connector Support Additional 4 USB Ports - 1 * Front Panel Audio Connector - 1 * System Panel Connector
Back Panel I/O Ports	- 1 * PS/2 Mouse & Keyboard - 1 * VGA - 1 * HDM1 - 4 * USB 2.0 - 1 * LAN Port (RJ45) - 3 * Audio Jacks
Lan	Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio	Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Size	- Micro ATX (240*168 mm)

Product Name	Intel H61-BC LGA1155 motherboard(No PS/2 Port)
Processor	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors /Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package. L3 cache varies with CPU.
Chipset	Intel® H61 Express Chipset
Memory	2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory, Support for DDR3 1600/1333 MHz Memory Modules.
Slots	- 1 * PCI Express x16 Slot - 1 * PCI Express x1 Slot
Storage	- 4 * Serial ATA 2.0 devices
Internal I/O Connectors	- 1 * 24-pin ATX Power Connector - 1 * 4-pin ATX 12V Power Connector - 2 * USB Connector Support Additional 4 USB Ports - 1 * Front Panel Audio Connector - 1 * System Panel Connector
Back Panel I/O Ports	- 1 * VGA - 1 * HDM1 - 4 * USB 2.0 - 1 * LAN Port (RJ45) - 3 * Audio Jacks
Lan	Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio	Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Size	- Micro ATX (240*168 mm)

packing (support OEM ODM)

Quality Assurance:

Our product is renewed, ensuring that it has undergone thorough testing and inspection for quality assurance. It is built with premium components and backed by PCWINMAX's warranty and customer support.

Our advantages:

Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.

FAQ:

1.Do your products come with a warranty?
Yes, all our products are backed by a comprehensive warranty and professional after-sales support service. Contact us for any issues or questions.
2.How do you ensure quality?
We have rigorous quality control including pre-production samples, final inspections, and testing before any product ships to customers. This guarantees you receive electronics that work flawlessly.
3.What products are available?
We offer a wide range of computer components including graphics cards, motherboards, RAM, SSDs, HDDs, CPUs, and more. Ask our sales team about our full catalog.
4.What additional services are offered?
Samples - Test out products before purchase
Daily price lists - Stay updated on the latest pricing
Technical support - Our experts are here to help

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Tengyatong Electronic Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Intel PC Motherboard
Brand Name:	pcwinmax
Model Number:	h61
Certification:	CE FCC ROHS
Place of Origin:	CHINA
MOQ:	2
Price:	19.99~35.99$
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 piece 7days
Delivery Time:	3~8 work days
Item Condition:	New
Package:	Yes
Ports:	SATA, DVI, VGA, PS2
Chipset:	INTEL H61
Maximum Ram Capacity:	8GB
Application:	Desktop
Socket Type:	LGA 1155
Form Factor:	ATX
Memory Type:	DDR4, DDR3
Graphics Card Type:	Integrated
Hard Drive Interface:	SATA
