Pn800-Pn1600 Cable Manufacturing Machine , Electric Wire Making Machine Semiautomatic

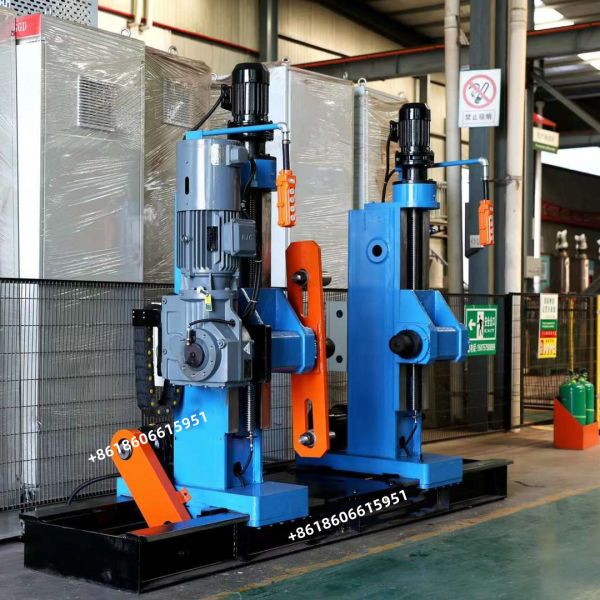

Free Installation Column Type Pay Off And Take Up Stands PN800-PN1600

1.Application: Column type Take-up with a wide range of applications and bobbins due to their ability to move the columns.

2. Technical parameter of pay-off stand:

• specification of pay off reel: PN1000 ~ PN2000
• maximum load capacity: 4T
• the paying off tension is controlled by mechanical friction and can be adjusted.
• the structure is shaftless, with electric lifting reel and electric clamping or loosening reel.
• ifting and clamping limit protection function

3.Technical parameter of take-up stand:

• Specification of take-up reel: Ø 800mm~Ø 1600mm (to be implemented according to the demander's standard)
• Applicable cable diameter: Ø 6 - Ø 20mm
• Take-up speed: 0~35m/min
• Applicable coil weight: 5T
• Take-up motor: 4kw
• Take-up controller: variable frequency speed controller
• Wiring accuracy: 1-2% of the set pitch
• Wiring motor: 0.75kw
• Lifting motor: 0.75kw
• Clamping motor: 0.75kw
• Structural form: the whole machine is composed of base slide at the bottom, two columns, independent motor driving column slide-type lead screw movement, and independent electrical control box.
• The two spindle centers on the column are shaftless loading and unloading spools. The centers are driven by two 0.75kw AC motors through cycloidal pinwheel reducers to drive the screw nut to lift and lower. Each center seat can be lifted and lowered separately or simultaneously. It is equipped with mechanical and electrical dual protection devices. In order to meet the use of different specifications of spools, it is equipped with different specifications of centers.
• The opening and closing system drives the screw rod and nut horizontally through two independent motors, which are used to clamp and loosen the wire coil, and is equipped with overload protection device.
• The take-up adopts a torque motor, which drives the main shaft through the 2-speed gearbox to drive the reel to rotate, and the torque meter controller controls the take-up motor.
• The winding speed can be tracked
• The front operation surface of the take-up machine is equipped with the start, stop and electric buttons of the whole machine to facilitate the adjustment of the wiring operation.

Feature:

• Pushbutton or touchscreen Controls
• Motorized or Mechanical Traverse
• No timing belts or sheaves
• Compact footprint
• Easy to load
• Emergency stop limit switch
• AC Vector Drive(s)
• PLC Control
• Wide reel range
• Heavy lifting capacity
• Dancer or Torque Control
• Wire Takeup power: AC motor + frequency converter + reducer;
• Wire takeup speed control: automatically control the motor wire feeding speed;
• Brake: pneumatic brake;
• Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.
•
