Filter Medicine Storage Cabinet Filtering System for Laboratory Storage Cabinets

Filter Medicine Cabinet Filtering System for Laboratory Storage Cabinets

Filter Medicine Cabinet Specifications :

even-inch LCD touch control screen
Online environmental monitoring and control system
Double-layer filtration device
One fan

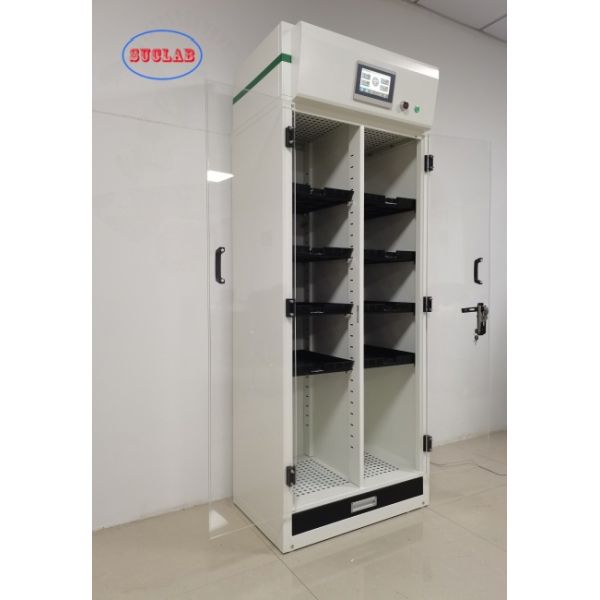

Eight adjustable shelves. Filter Medicine Cabinet Size : H2060*W800*D510mm, Color: Grayish white, Door type: Manual double doors.
Metal components: Main material ≥1.2mm galvanized steel plate. The steel plate undergoes a neutral salt spray test according to GB/T10125-2021 standard. After 72 hours of salt spray testing, the sample shows no defects, and the protection rating Rp is level 10. A relevant salt spray test report issued by a third-party testing institution with CMA and CNAS qualifications is provided. Epoxy resin electrostatic spraying, covered with a durable, chemical-resistant, lead-free coating, maintains a high gloss finish and minimizes the effects of corrosion and moisture.
Door panel: Main material ≥8mm acrylic plate, excellent weather resistance, superior chemical resistance, not easy to age, colorless and transparent, translucent throughout, visually comfortable, beautiful and elegant.
Operation screen: Uses a seven-inch LCD industrial touch display screen, high-definition display resolution 1024*600, 75° viewing angle.
Filter Medicine Storage Cabinet Control system: Online environmental monitoring system displays real-time temperature, humidity, and VOC concentration. Minimum pre-alarm parameters can be set; an alarm is triggered when the set alarm value is exceeded, ensuring the safety of personnel and products.
Fan monitoring: Adjustable fan speed to ensure appropriate airflow for different chemical handling requirements; noise ≤40dB, no sparks or static electricity. The fan speed adjustment function can be adjusted appropriately according to the stored reagents in the cabinet, effectively extending the service life of the fan and filter. Timed fan on and off, multiple identical ventilation periods can be set daily, and different fan working times can be set weekly and monthly;
Filter saturation alarm: Uses a dual concentration probe; the filter saturation alarm value is set, and an alarm is triggered when the range is exceeded, corresponding to the VOC concentration level. When both the alarm and concentration level are high, the filter needs to be replaced; an audible and visual alarm reminds users to replace the filter element in time. Fan: Adopts a backward-curved centrifugal fan, 24-volt voltage, stable performance, quiet operation, and no sparks or static electricity.
High-efficiency filtration system: Arranged according to particle size, following ASTM standards, effectively targeting inorganic and organic gases, with strong adsorption capacity. The filter is made of PP material, molded in one piece, and features modular management. The raw materials use coconut shell activated carbon with a special formula, which can effectively adsorb complex toxic and harmful gases, ensuring safety and convenience; no external piping or pipe construction is required, making it easy to use. It effectively filters the air environment inside the cabinet 24 hours a day, reducing the harm of toxic and harmful gases to the human body without affecting the air conditioning and fresh air supply.
Equipped with casters at the bottom for easy movement.
8 shelves: Made by one-piece injection molding, the adjustable shelves maximize storage space and increase space utilization.
Leakage containment device: The base is equipped with an acid and alkali resistant leakage containment drawer, which is corrosion-resistant and prevents liquid leakage from broken reagent bottles.
Filtration efficiency and filter adsorption capacity: For standard chemicals: isopropanol, cyclohexane, and hydrochloric acid, when the filter reaches 1% TWA (occupational inhalation limit specified by the Ministry of Health), the specific adsorption capacity of each filter reaches Class A standard, i.e., isopropanol adsorption capacity ≥625g, cyclohexane adsorption capacity ≥890g, hydrochloric acid adsorption capacity ≥2184g. To meet the needs of various reagents in the laboratory, the manufacturer must provide test reports on the rated adsorption capacity of the filter for at least 18 commonly used laboratory reagents;
To avoid disputes arising from intellectual property rights, all intellectual property rights related to the product belong to the manufacturer. The manufacturer must provide relevant certificates issued by the China National Copyright Administration and the National Intellectual Property Administration.
The bidder must provide a software product registration test report issued by a third-party testing agency with CMA qualification. The testing basis must fully comply with the GB/T 25000.51-2016 standard. The report must cover the testing and verification of key software functions such as core environmental monitoring, equipment driver control, and system diagnostic management. 16. The air exchange rate shall meet the relevant standards of JG/T385-2012. A relevant test report issued by a third-party testing agency with CMA and CNAS qualifications must be provided, demonstrating an air exchange rate of no less than 180 times/hour.
The manufacturer must provide sufficient product liability coverage for its ductless air purification pharmaceutical cabinets. A valid product liability insurance policy underwritten by a reputable insurance company must be provided, with a cumulative compensation limit of no less than 5 million RMB. The manufacturer must also demonstrate that it has continuously maintained this insurance for at least 3 years, proving the sustained reliability of its product quality and the stability of its business operations.

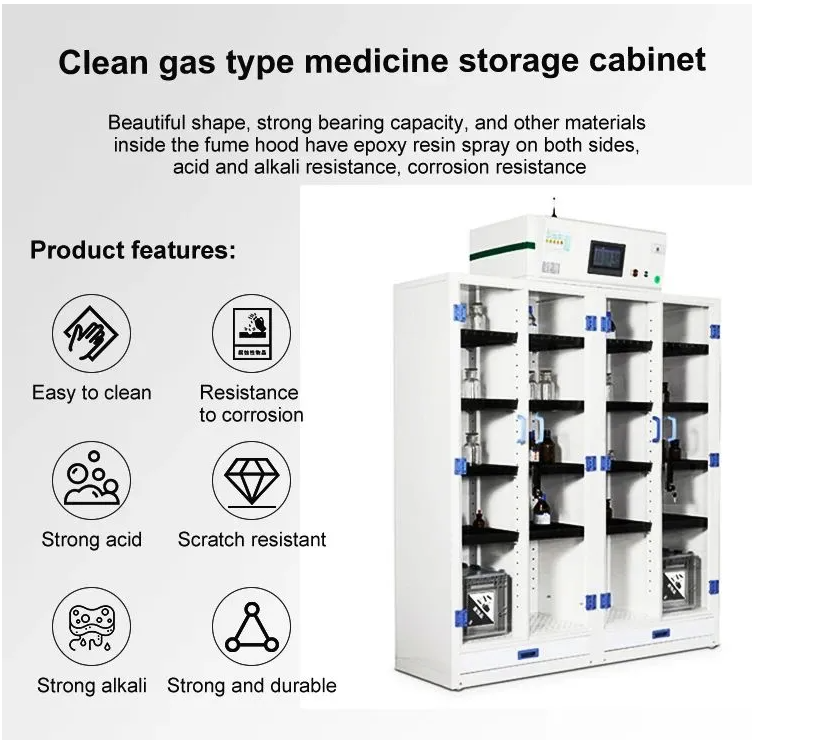

Features of Filter Medicine Storage Cabinet :

1. Metal parts: main material 1.2mm galvanized steel sheet, electrostatic spraying epoxy resin, coated with durable protective lead-free coating, high smoothness and reduce the possibility of corrosion and the effects of moisture.

2. Door panel: main material 6mm acrylic sheet, excellent weather resistance, excellent chemical resistance, anti-aging, colorless and transparent, surface light, visual comfort, elegant appearance.

3. Layer Board: info 1.2mm galvanized steel, corrosion-resistant coating, resistance to acids and bases, height-adjustable.

4. Acid-base box: polypropylene PP material, storing strong acid strong alkali corrosion.

5. Seven-inch LCD touch-screen display, real-time temperature and humidity monitoring, fan control, VOC concentration in environmental monitoring and alarm systems.

6. The United States imported PLC fan, 24-volt current, stable performance, ultra-quiet, no spark of static electricity.

7. Efficient filtering system, listed according to their particle size distributions, adhere to the ASTM standard, effective for acid gases and organic gases adsorption capacity, particle filters, high efficiency HEPA filter, particles larger than 0.3um, filtration efficiency up to 99.995%.

8. LED lamp power 25W daylight lamp, does not produce heat, security does not affect experimental ambient temperature, energy saving, environmental protection and long service life.

Technical Parameters of Filtered Medical Cupboards:
