| Categories | Copper Brass Metals |
|---|---|
| Brand Name: | Antai |
| Model Number: | H59 H62 |
| Certification: | SGS |
| Place of Origin: | China |
| MOQ: | 1 TON |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Ton Per Month |
| Delivery Time: | 10 days |
| Packaging Details: | Standard export packaging |
| Specification:: | Wall thickness 0.2-120mm |
| Type:: | Straight Copper Pipe |
| Length:: | As required |
| Alloy Or Not:: | Alloy |
| Elongation (≥ %):: | 30 |
| Outside Diameter:: | Outside Diamter 2~914mm |
| Temper:: | 1/4H 1/2H Hard Soft |
| Payment terms:: | L/C T/T (30%DEPOSIT) |
| Ultimate Strength (≥ MPa):: | 440 |
| Wall Thickness:: | Wall thickness 0.2-120mm |
| Processing Service:: | Bending, Decoiling, Welding, Punching, Cutting |
| Standard:: | ASTM B42/68/88/280/111/640/447 |
| Surface:: | mill finish polished |

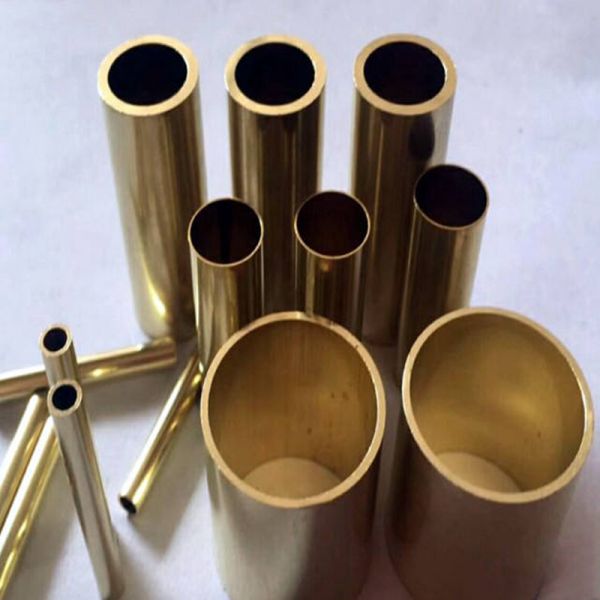

Brass Round Shape Pipes Tubes Top Brand 70 30 H60 H62 H68 Straight Copper Pipes
| Type | Brass Pipe |
| Standard | AiSi, ASTM, bs, DIN, GB, JIS, etc |
| Certificate | ce,ISO9001,etc |
| Length | 1-12m,According to customer needs |
| Wall Thickness | 0.3mm~80mm,According to customer needs |
| Outside Diameter | 2mm~610mm,According to customer needs |
| Material | C1220,C12000,C10200,T1,T2,T3,TP2,TU1,TU2,TU etc |
| Temper | soft (M), half soft (M2) and half hard (Y2) |
| Ultimate Strength (≥ MPa): | 205-245 |
| Elongation (≥ %) | 40% |
| Alloy Or Not | Non-Alloy |
| Model Number | TP2/C11000/C12200 etc |
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
| Grade: | TP2/C11000/C12200 etc |
| Sample | Available |
| MOQ | 200 KG |
| Payment Term | T/T,D/P,L/C,/D/A/,Western Union,MoneyGram,according to customer |
| Delivery Time | within 7 days,according to the quantity ordered by the customer |
| Alloy | Chemical Composition(%) | |||||
| QB | JIS/UNS | Cu | Pb | Zn | Fe | Total Impurity |
| H62 | C2800 | 60.5~63.5 | ≤0.08 | REM | ≤0.15 | ≤0.5 |
| H65 | C2680 | 63.5~68.0 | ≤0.03 | REM | ≤0.1 | ≤0.3 |
| H70 | C2600 | 68.5~71.5 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H80 | C2400 | 79~81 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H90 | C2200 | 88.0~91.0 | ≤0.03 | REM | ≤0.1 | ≤0.1 |
| H96 | C2100 | 95.0~97.0 | ≤0.03 | REM | ≤0.1 | ≤0.2 |
| Brass Alloy | Tensile Strength (N/mm) | Elongation(%) | Hardness (HV) | ||||||||
| Soft | 1/2H | H | Soft | 1/2H | H | Soft | 1/4H | 1/2H | 3/4H | H | |
| C2100 (H96) | ≥205 | 270-345 | ≥280 | ≥33 | ≥18 | — | ≤65 | 65~80 | 80-100 | — | ≥100 |
| C2200 (H90) | ≥225 | 295-365 | ≥320 | ≥35 | ≥20 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2300 (H85) | ≥245 | 310-385 | ≥340 | ≥40 | ≥23 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2400 (H80) | ≥255 | 320-405 | ≥375 | ≥44 | ≥25 | — | ≤80 | 75-105 | 100-130 | — | ≥125 |
| C2600 (H70) | ≥295 | 370-440 | 430-510 | ≥5 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2680 (H65) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2720 (H63) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2800 (H62) | ≥320 | 410-490 | ≥450 | ≥35 | ≥15 | — | — | 85-105 | 105-130 | — | ≥130 |
|
