Outdoor Fiber Optic Cable 12 24 48 96 Core Figure 8 GYTC8S

Manufacturing outdoor fiber optic cable 12 24 48 96 core figure 8 GYTC8S



Fiber Optic G652D

Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm2·km

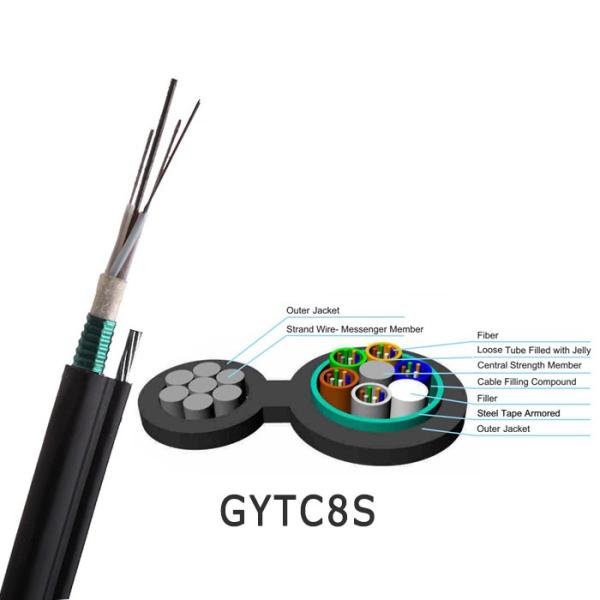

Cable performance:

Item		Parameters
Fiber Count		12
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green/Brown
Loose tube	Dimension	2.0mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green
Filler	Material	PE
	Color	White
Central Strength Member	Dimension	1.5mm
	Material	FRP
Armoured	Material	Corrugated steel tape
Inner Jacket	PE
Messenger Stranded steel wire	Dimension	3.0mm(7*1.0mm)
Outer jacket	Material	PE
	Color	Black

Certification:

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Exhibition:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory



2,Q:What is the MOQ?


A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?


A:YOFC,Fiberhome,etc






4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?


A:Yes. We supply OEM service.






7.What’s your payment terms?


A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
