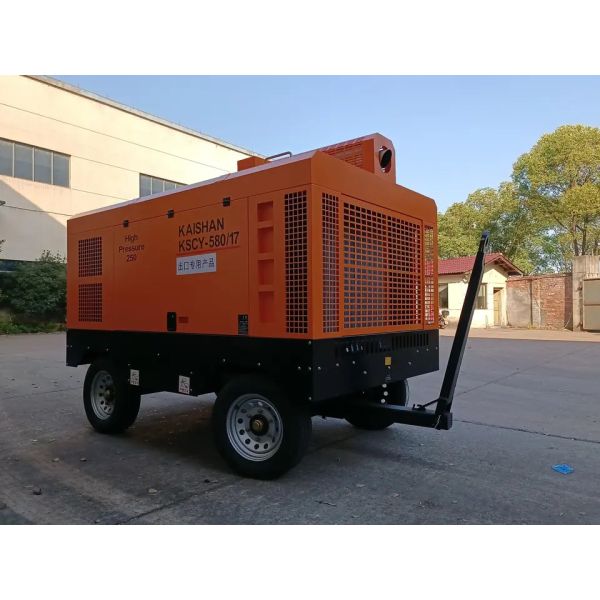

Silk KSCY-580/17 580CFM 17 Bar Portable Diesel Screw Air Compressor For Mining Industry
Detailed Product Description
1.Efficient cooling system
The latest achievements in R&D center of North America, ensure
the compressor always state the optimal operation. Independent oil,
water, gas cooler with design of large diameter fan, to adapt to
the cold and hot summer climate.
2.Heavy load EFI diesel engine
Fuel speed control system, electronically controlled high pressure
common rail.
Assort cumins, Yuchai etc. diesel engine electronically controlled
fuel injection system, according to load condition, electronic
control fuel injection quantity precisely, to achieve best
combustion state in full range running.
Technical Parameters
| Model | Working pressure (Bar) | Capacity (CFM) | Connector | Weight (kg) | Dimension (mm) |
| KSCY-220/8 | 8 | 220 | G1 1/4 X 1, G3/4 X 1 | 1400 | 3030X1840X1580 |
| KSCY-330/8 | 8 | 330 | 1550 | 3240X1760X1785 | |
| KSCY-425/10 | 10 | 425 | 1880 | 3300X1880X2100 | |
| KSCY-400/14.5 | 14.5 | 400 | 1880 | 3300X1880X2100 | |
| KSCY-550/13 | 13 | 550 | G1 1/2 X 1, G3/4 X 1 | 2400 | 3000X1520X2200 |
| KSCY-550/14.5 | 14.5 | 550 | 2600 | 3000X1520X2200 | |
| KSCY-560/15 | 15 | 560 | 3200 | 3600X1800X2450 | |
| KSCY570/12-550/15 | 12/15 | 570/550 | 3200 | 3600X1800X2450 | |
| KSCY-680/14.5 | 14.5 | 680 | 3200 | 3600X1800X2450 | |
| KSCY650/20-700/17 | 20/17 | 650/700 | 3200 | 3600X1800X2450 | |
| KSCY-750/20 | 20 | 750 | 3200 | 3600X1800X2450 |
