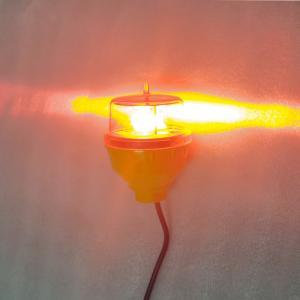

L810 Single Aviation Obstruction Light Steady Burning Low Intensity 32.5cd

L810 Single Aviation Obstruction Light Steady Burning Low Intensity 32.5cd

L810 Single Aviation Obstruction Light Steady Burning Low Intensity 32.5cd
L810 Single Aviation Obstruction Light Steady Burning Low Intensity 32.5cd
Categories Aviation Warning Lights
Brand Name: ANNHUNG
Model Number: AH-LI-B2
Certification: CE
Place of Origin: China
MOQ: 1
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000Pieces for one month
Delivery Time: 7-15 work days
Packaging Details: carton
Colors: Red
Intensity(candela): ≥32.5cd(type B)
Horizontal Output(degrees): 360
Vertical Divergence(degrees): ≥10
Flash Characteristics: Steady-burning/20/30/60 adjustable
Operation Mode: Dusk-to-dawn Automatically as standard.
Contact Now
Company Info.
SHENZHEN ANHANG TECHNOLOGY CO., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

L810 Single Aviation Obstruction Light Steady Burning Low Intensity 32.5cd

AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light
This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light
FAA L-810
Features
Electrical
3 high power CREE LED, make sure LED keep bright while use
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB
Surge and lightning protection
Optional
Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing
Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light
DescriptionParameter
Light SourceLED
Flash Characteristics
Steady-burning/20/30/60 adjustable
Operation Mode
Dusk-to-dawn Automatically as standard.
LED Life Experience(hours)>100,000
Operating Voltage110-240VAC, 48VDC, or others
Power(W)2.5W
Mounting
3/4 inch pipe thread as standard. 1inch as option
Dimension(mm)
Φ90×130
Weight(kg)0.3
Ambient Temperature(℃)-55~70
Humidity10%-95%RH(No condensation)
Wind Speed240Km/h
WaterproofIP66
Options Available
NVG(Night Vision Goggles) compatible LED

high building aircraft warning light
led aviation lights
aviation light
aircraft obstruction light
icao type b aviation obstruction light
aviation obstruction light
low intensity light
