Jelly Stick Blister Packing Machine For Liquid 6.2Kw 3500 Editions/Hour

Categories Blister Packing Machine
Brand Name: LTPM CHINA
Model Number: DPP-Series
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets
Delivery Time: In 25 days after receiving the deposit
Packaging Details: Wooden Case
Production capacity: 3500 editions/hour
Air pressure: 0.4-0.6Mpa
Punching frequency: 10-40 times/min
Voltage: 220V/380V
Weight: 1400KG
Total power: 6.2Kw
Filling Material: Liquid or Paste
Dimensions: 3000x730x1600
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

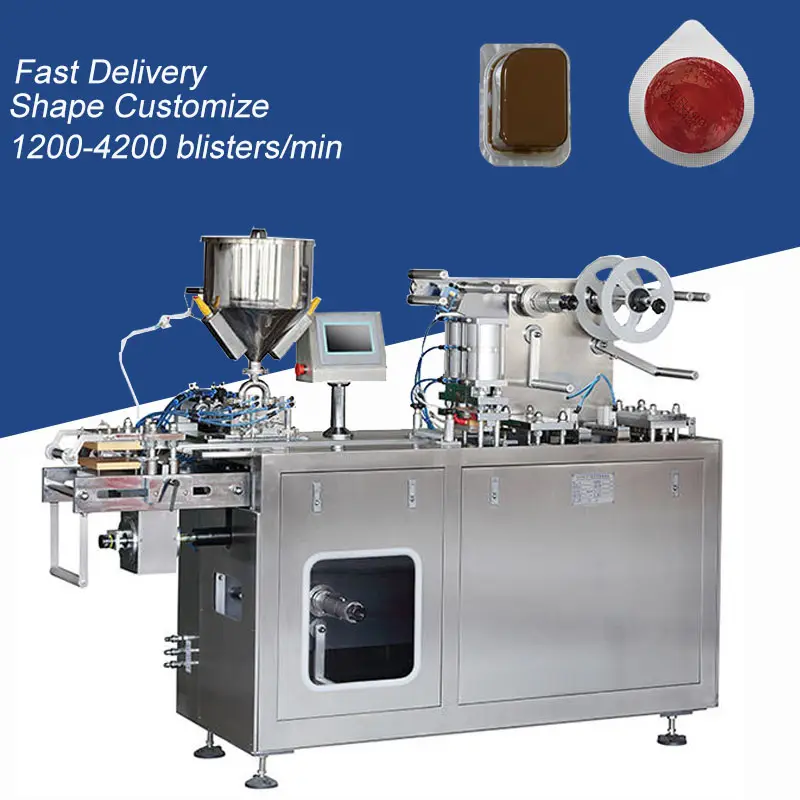

Jelly Stick Blister Packing Machine For Liquid 6.2Kw 3500 Editions/Hour

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

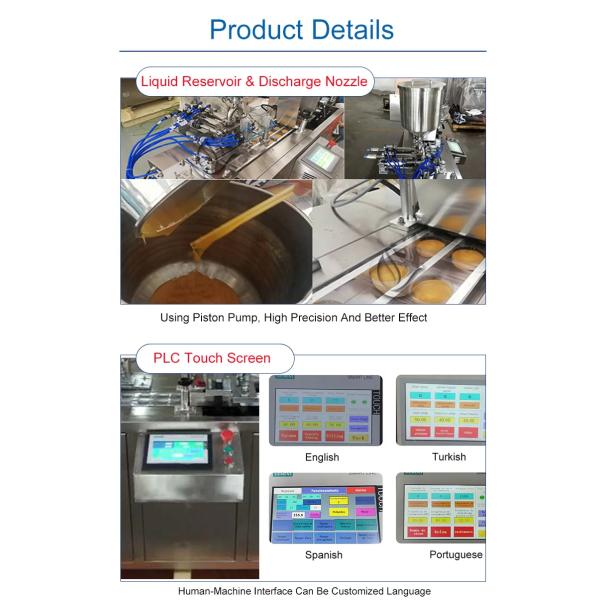

2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.

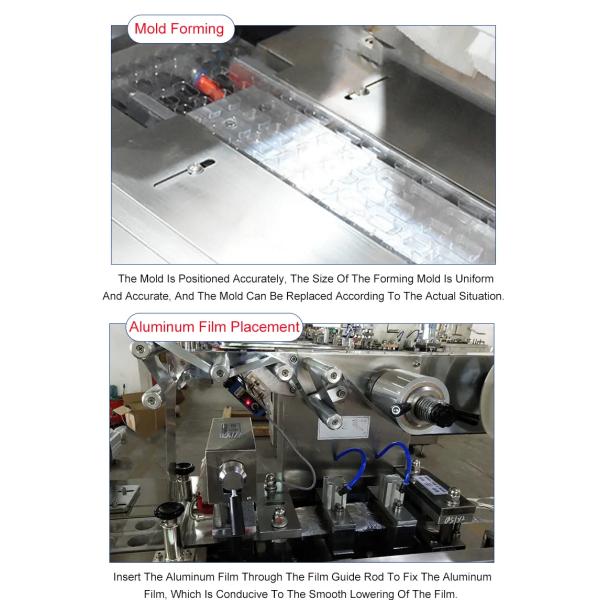

3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

Punch frequency6-50times/min
Production capacity35000-23000pcs/hour
Max. Forming area & Depth240x70x26mm
Standard Stroke range40-160mm
Standard plate size80x57mm
Air pressure0.4-0.6Mpa
Compressed air requiredAir compressor>0.3m3/min
Total power supply380V220v 50Hz 6.2Kw
Main motor1.5KW
PVC hard Film0.15-0.5x 160mm
PTP Aluminum film0.02-0.035 x 250mm
Mould coolingTap water or recycling water
Overall Dimension(LxWxH)3000x730x1600mm
Weight1400kg
Noise<75dBA



Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
