340 Horsepower Liquid Tanker Truck HOWO 6x4 Water Sprinkler Vehicle Energy Saving

Categories Liquid Tanker Truck
Brand Name: Howo
Model Number: 20000 L
Certification: ISO CCC
Place of Origin: China
MOQ: One set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200 unit /units per month
Delivery Time: 30-35 Work days
Packaging Details: In nude
Dimensions (L x W x H) (mm): 10350*2496*3350 mm
Horsepower: 251 - 350hp
Engine Capacity: 9726ml
Gross Vehicle Weight: 25000 kgs
Tank material: Carbon Steel, aluminum alloy, stainless
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

340 Horsepower Liquid Tanker Truck HOWO 6x4 Water Sprinkler Vehicle Energy Saving

340 Horsepower Liquid Tanker Truck HOWO 6x4 Water Sprinkler Vehicle Energy Saving


340 Horsepower SINOTRUK HOWO 6x4 Fuel Liquid Tanker Truck 20000L Oil Transport Truck to Kenya


Product Description of SINOTRUK HOWO 6x4 Fuel Liquid Tanker Truck 20000L


SINOTRUK HOWO 6x4 Fuel Liquid Tanker Truck 20000L is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.


Optional tank capacity: 3,000 - 35,000 liters for oil tank truck; 30,000 - 60,000 liters for oil tank semi trailer


Optional truck brand: DFAC, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, etc.


Optional wheel drive: 4x2, 4x4, 6x4, 6x4, 8x4, left hand drive or right hand drive.


Main Features of SINOTRUK HOWO 6x4 Fuel Liquid Tanker Truck 20000L

NameSINOTRUK HOWO 20M3 Oil Tank Truck
Dimension(LxWxH)10350×2496×3350 mm
Total Mass24500 Kg
Rated Payload15000 Kg
Cerb Weight11250 Kg
Passenger3
Approach/Departure Angle16/12
The Parameters of Chassis
Manufacture/ModelHOWO/ZZ1257N4647D1
Driving Type6*4 left/right hand drive
Wheel Base4600 + 1350mm
Front/Rear Track2022/1830(mm)
Tyre12R22.5, 10+1 spare tire
Front/Rear Suspension1500/2900(mm)
Leaf Spring Number4/-,4/12,10/-,10/12
The Paremeters of Engine
Engine ModelD10.34-40
Rated Power340hp
Fuel TypeDiesel oil
Displacement/Capacity9726ml
Emission StandardEuro 3/4/5
ManufacturerChina Heavy Duty Group Co., Ltd.
The Parameters of Equipment
Color/LogoCustomizable
MaterialCarbon steel (optional with stainless steel, aluminum alloy)
FunctionFuel/oil/diesel Transporting and refueling, etc.
Volume of Tank20000L
Thickness5mm
Equipment

1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.

2. Tank divided into 6 compartments, each discharge valve for each compartment.

3. Each European standard man hole cover and each air emergency valve for each compartment.

4. Equipped with folding barrier on top of the tank.

5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender.


1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.


2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.


3.Tank shape: Optional for round square, oval, and round;


4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.


5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

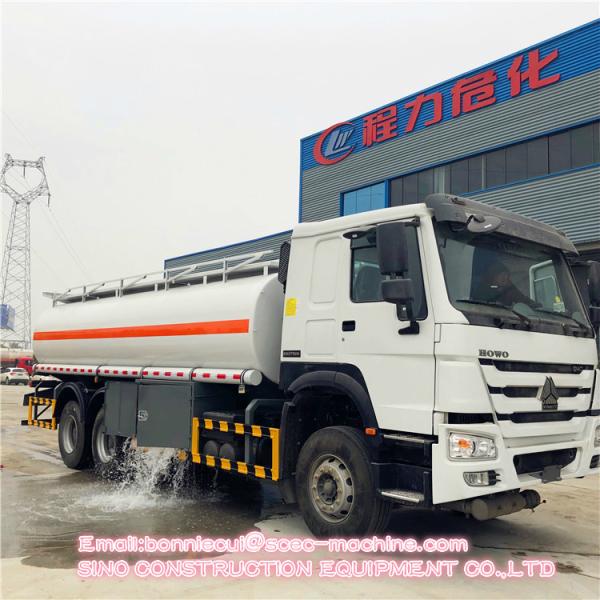

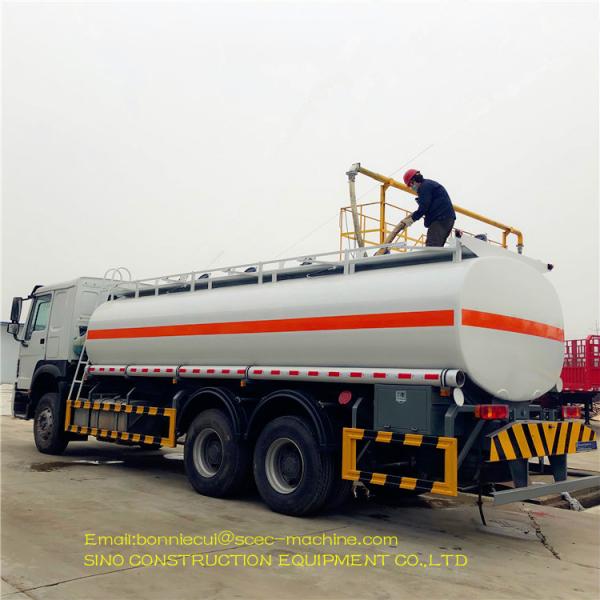

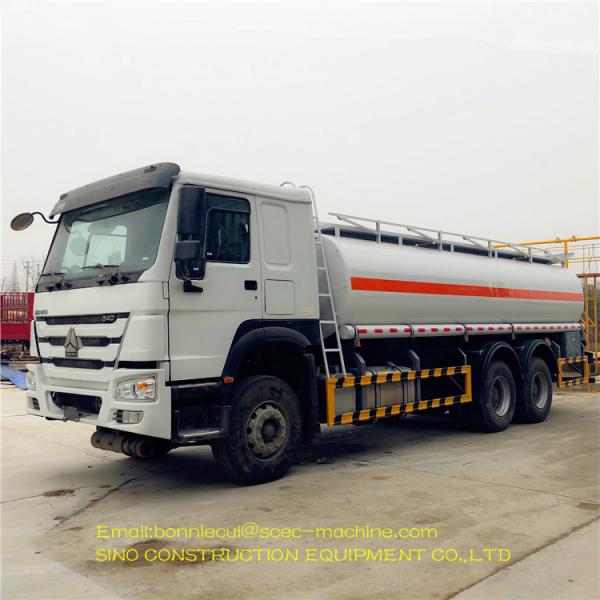

The photo of SINOTRUK HOWO 6x4 Fuel Liquid Tanker Truck 20000L


FAQ


1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.

2. What is the payment term?

Our Payment: T/T, L/C, etc.

3. How long is the warranty period of your equipment’s?
1 year.

4. What are your main products?

Counterbalanced electric forklift, electric pallet stacker, electric pallet truck, electric reach truck, electric tow tractor, order picker.


5. Can you customize the product?
Yes, we are a professional storage equipment company integrating design, production and sales, have a very professional team of designers and technical engineers, can customize the equipment according to your requirements.

6. How about the quality of your products?

We have a professional quality control department to monitor the whole production process; have CE,ISO9001 certification; provide online support at any time.
