| Categories | RJ45 Modular Jack |
|---|---|
| Brand Name: | Shareway |
| Model Number: | JXT7-1131NL = SRJG81131HNL |
| Certification: | RoHS,ISO9001-2001 |
| Place of Origin: | Guangdong,China |
| MOQ: | 500/1000 |
| Price: | Supportive |
| Payment Terms: | TT,Paypal,West Union |
| Supply Ability: | 100k-pcs/month |
| Delivery Time: | Stock Or 3 weeks |
| Packaging Details: | Reel/Tray |

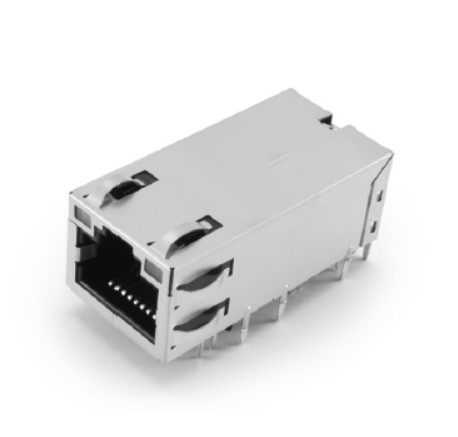

| Product name: | JX17-1131NL1X1 Tab-up 10GBase-T RJ45 Connectors Rugged design for industrial and outdoor use |
| Application: | Network |
| Length: | 34.29mm |
| Feature: | Long type |
| Port: | Single |
| Speed: | 10Gigabit |
| PoE: | Yes, PoE over 100m of UTP |
| Other: | Fully compliant to IEEE802.3.an for 10GBase-T |
| Company Info. |
| SHAREWAY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Features and benefits of JXT7-1131NL = SRJT81131HNL:
| Part Number | Trader Part Number | Inductance | Turns Ratio | LED Configuration ( Left/Right) | Isolation ( Pri:Sec) | IC Design Style | Power Over Ethernet ( PoE) [DC Current @ 70℃)] | Power Over Ethernet ( PoE) Power Supported [ 4 pair UTP] |
| SRJT81123NL | JXT7-1123NL | 120uH @ 8mA | 1.00 ± 2% | None | 2250VDC/60 Sec | 4 Channel | N/A | N/A |
| SRJT81131NL | JXT7-1131NL | 120uH @18.3mA | 1.00 ± 2% | Y-G/G | 2250VDC/60 Sec | 5 Channel | 900mA | 100W (PSE/PD) |
| SRJT81139NL | JXT7-1139NL | 120uH@19.5mA | 1.00 ± 2% | Y-G/G | 2250VDC/60 Sec | 4 Channel | 1300mA | 140W (PSE/PD) |
| SRJT81140NL | JXT7-1140NL | 120uH@18.3mA | 1.00 ± 2% | Y-G/Y-G | 2250VDC/60 Sec | 4 Channel | 1000mA | 100W (PSE/PD) |
Description:
| Part number | JXT7-1131NL = SRJ T81131HNL |
| Connector Type | RJ45 |
| Part Status | Active |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 10 Gigabit Base-TX, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | Vertical |
| Termination | Solder |
| Height Above Board | 0.663" (16.85mm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Shielding | Shielded |
| Features | Board Guide |
| Tab Direction | User Selectable |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 6.0µin |
| Shield Material | Brass |
| Dielectric Material | Thermoplastic |
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you
the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantities.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International
Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternatives for Halo, Pulse, We-online, Chilisin,
Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
Why us?
Working with worldwide TOP brand customers including Honeywell,
Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch
NorthBound Networks.
Northbound Networks is the OEM for this project.
Q: Can I have samples for testing quality?
A: Yes, you can buy some samples of any of our products for testing quality and market
Q: What is the delivery time if we place an order?
A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for bigger quantity, let’s confirm when you place official order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service, we turn your idea into reality.
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order
quantity. Please just send us the information about your Logo.
Q: Do your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification are approved to make sure
high quality.
As a manufacturer, we can ensure the delivery time according to the
formal contract.
The effective purchasing and production departments enable us to
deliver the goods on time and we can provide amazing service after
selling. What we provide are high-level products with high-quality
service. Let's talk more in detail to make it happen.
|
