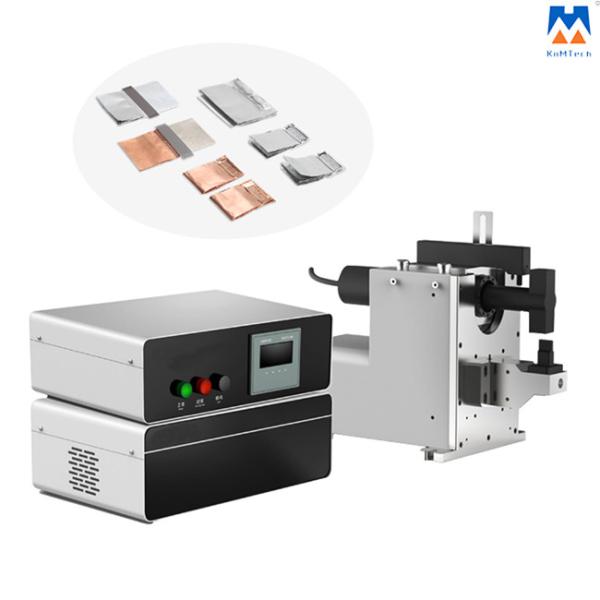

4kW 20kHz Ultrasonic Metal Cable Aluminum Cable Welding Machine

Ultrasonic Wire and Metal Welding & Splicing Machine

Imported ultrasonic technology from Germany, original imported ultrasonic system (including generator, transducer), stable welding performance, excellent consistency. It is used by many well-known battery manufacturers for the final welding of new energy power battery tabs. It can also be used in welding fields such as PACK welding, flexible connection sheets, solar panels, wire terminals, IGBT power modules, transformers, capacitors, connectors, heat sinks, copper tube sealing, battery coils, etc.

Technical parameters:

Features:

1. The ascending and descending speeds can be precisely controlled and adjusted.
2. Accurate positioning of upper and lower positions of the welding mechanism.
3. When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure stable amplitude output of the welding horn section.
4. The automatic cooling device can reduce the accumulation of heat when the equipment is operated at high speed.
5. Precise energy control method can ensure the stability of each welding and reduce the influence of external factors.
6. Unique ultrasonic welding unit design can maximize the conversion of ultrasonic energy to the welded product.
7. Available with multiple optional models, optional welding quality monitoring system.

Ultrasonic metal welding frame

Technical parameters:

The welding frame Features:

1. Adopt a large diameter air cylinder to ensure enough pressing force during welding, and the size of pressing force can be adjusted

2. The welding head can be operated in a wide range with adjustable stroke

3. It adopts the speed regulating valve, the welding head rise and fall speed can be adjusted

4. Adopt a self-lubricating oil-free bushing guide mechanism, which can make the welding clip move smoothly

5. It adopts a double slide rail guiding mechanism that can make the welding head smooth

6. It sets aside additional sensor for detecting the origin of the welding head (more suitable for automatic line)

7. The battery fixture installation hole position is reserved to facilitate the battery welding positioning

8. Manual welding machine is designed with air-defense step detection sensor, safer

Application:

Batteries, Auto splice welding, Formation of electric wire end, Welding for electric wires, transformers, capacitors, connectors, radiators, copper tube seals, battery coils, etc.

Of course. We are looking for sole agents who are willing to cooperate with us for the long business term.
2. What's your payment method?
100%T/T in advance before shipment.
3. Can you provide samples? Is it free or extra?
Yes, we could offer the sample and it's not free.
4. Could you make the metal welding machine according to our application needs?
Of course, please tell us your idea or your application.

Detailed Photo:

Incorporated in 2015, K& M Technologies Ltd is one-stop solution provider in plastic welding business, especially in ultrasonic plastic welding, ultrasonic non-woven fabric sealing and cutting, hot plate welding, water filter welding lines...

From June 2021, We started the cooperation with a famous brand Dongho Ultrasonics, and co-established a new company Sincere Sonics to handle the overseas market of Dongho brands ultrasonic welding machines.

We have the professional team for the design of the equipment based on over 25 years' experience of the main staff in this industry.

We have sold to more than 100 countries in the world in the past years, including coutries from Asia, Europe, South America, North America, Oceania and Africa.

Our product series include QD series, ME series, SS series and Dongho Series for ultrasonic welding machines; AY series for filter welding machines and hot plate welding machines.

Now we have agents in Turkey, India, Ukrane, Maylasia, Vietnam and we are looking for more agents or distributors around the world who can take good care of the aftersales services in the country or territory.
