9097683 Swing Reducer EX60-1 Swing Gearbox For Hitachi Excavator

Categories Excavator Swing Gearbox
Brand Name: TGFQ
Model Number: EX60-1
Place of Origin: CHINA
MOQ: 1
Price: 200.00-800.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: EX60-1 Excavator Swing Reducer
Model: EX60-1
Part Number: 9097683
Shaft: 12/20T
Quality: High Guarantee
Applicable Industries: Machinery Repair Shops, Energy & Mining
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

9097683 Swing Reducer EX60-1 Swing Gearbox For Hitachi Excavator

Excavator Swing Reducer EX60-1 Swing Gearbox For Factory Hitachi Excavator

Quick Details

Model:EX60-1
Brand: TGFQ
Part Number: 9097683
Part Name: Excavator Swing Reducer
Process: Heat Treatment
Delivery Methods: Air/ Express/ Sea

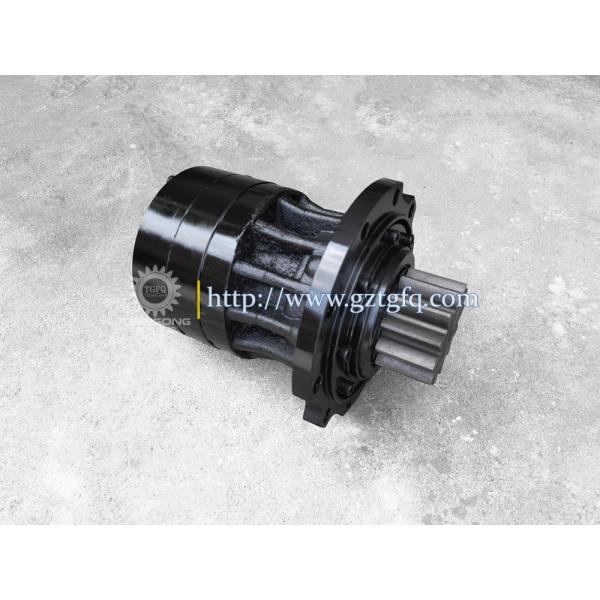

Excavator Swing Reduction Photo:

Excavator Swing Reduction Drawing:

Pos.Part NoQtyParts NameComments
02024086[1]CARRIER
24176070[2]PLATE;THRUST
32024936[1]CARRIER
44194018[3]PIN
54208325[3]PIN
62024084[1]HOUSING
74139939[6]PIN;SPRING
93039392[1]GEAR;SUN
103039391[1]GEAR;SUN
143036285[3]GEAR;PLANETARY
154193804[3]BRG.;NEEDLE
169727234[3]GEAR;PLANETARY
174187679[12]PLATE;THRUST
20960323[1]RING;RETAINING
224193803[1]BRG.;SPH.ROL.
23937460[1]BRG.;SPH.ROL.
262023206[1]SHAFT;PROP.
273036290[1]COVER
28J901032[8]BOLT
29A590910[8]WASHER;SPRING
314194712[1]COCK
3294-2024[1]PLUG
333038921[1]SLEEVE
344193120[1]SEAL;OILY 4262947
344262947[1]SEAL;OIL
36A811065[1]O-RING
474195482[2]PIN;KNOCK
492024077[1]GEAR;INTERNAL
502024937[1]GEAR;INTERNAL
514204645[2]SCREW
524207444[2]MAGNET
534206977[1]RING;RETAINING
54M492564[2]SCREW;DRIVE
553053093[1]NAME-PLATE
618049277[1]COVER(FOR TRANSPORTATION)
62J901211[6]BOLT(FOR TRANSPORTATION)
63A590912[6]WASHER;SPRING(FOR TRANSPORTATION)
119927488[1]RING;RETAINING
137J931645[10]BOLT
138A590916[10]WASHER;SPRING
14094-2024[1]PLUG
141J901211[12]BOLT
1433035979[1]GAUGE;LEVELI 3043290
1433043290[1]GAUGE;LEVEL
1444191882[1]PIPE
1454140643[1]FITTING;PIPE
146A590912[12]WASHER;SPRING
1604199040[1]MOTOR;OILT 4224977
1604199040[1]MOTOR;OIL4223584
1604199040[1]MOTOR;OIL4157562
1604199040[1]MOTOR;OIL
1604224977[1]MOTOR;OIL
1604224977[1]MOTOR;OIL
1604224977[1]MOTOR;OIL
1604224977[1]MOTOR;OIL
2009097683[1]SWING DEVICE(WITHOUT MOTOR)(FOR TRANSPORTATION)

Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.

Troubleshooting-General Precautions:

• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially
effect the Track Drive Motor's performance.
• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken
during the reassembly process.
• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a
result must be handled with care to avoid irreversible damage.
