| Categories | 1.25G SFP Optical Module |
|---|---|
| Place of Origin: | Hubei, China |
| Brand Name: | YXFiber |
| Model Number: | YXF-P14Z-LCD/YXF-P15Z-LCD |
| Certification: | CE RoHS FCC |
| MOQ: | 1pcs |
| Price: | $40.00 |
| Packaging Details: | 10pcs in Plastic tray |
| Delivery Time: | 1~3working days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs per month |
| Type: | Fiber Optic Transceivers |
| No. of Fiber: | 1. |
| Use: | FTTX |
| Supply Voltage: | 3.3V |
| Data rate: | 1.25Gbps |
| Power: | 4~-1dBm |
| Wavelength: | 1490nm/1550nm |
| Transmission distance: | 100km |
| Interface: | BIDI LC |
| Fiber Type: | SMF |
| DDMI: | Yes |
| Warranty: | 1 Year |
| Selling Units: | Single item |
| Single package size : | 22X5X6 cm |
| Single gross weight: | 0.060 kg |
| Package Type: | 10pcs/ anti-static box |
![]()

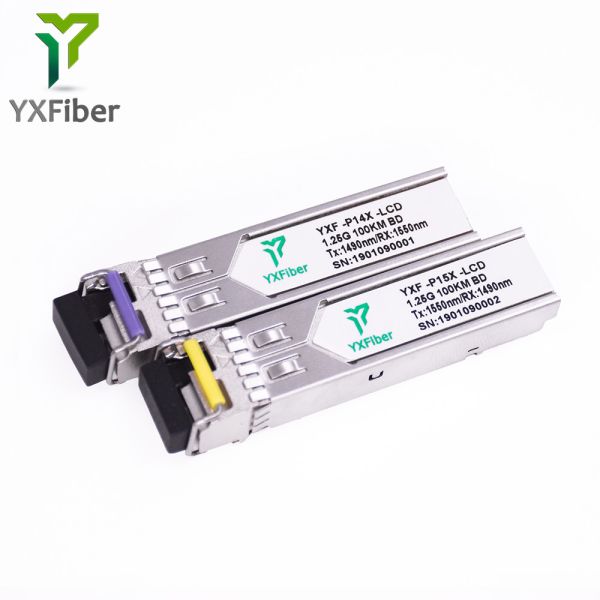

1.25G BIDI 100km 1490nm/1550nm LC/SC Connector SFP Module
Features
l Up to 100km transmission on SMF
l Up to 1.25Gbps
l 1550nm DFB laser and PIN receiver
l Single LC/SC receptacle optical interface compliant
l 2-wire interface for integrated Digital Diagnostic monitoring
l Hot pluggable
l Very low EMI and excellent ESD protection
l +3.3V power supply
l Power consumption less than 1.0W
l Operating case temperature: 0~+70°C
Applications
l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes
Compliance
l Compliant with IEEE 802.3Z
l Compliant with MSA SFF-8472
l Compliant with SFP MSA
Specification
Absolute Maximum Ratings | |||||
Parameter | Symbol | Min. | Max. | Unit | Notes |
Storage Temperature | TS | -40 | +85 | ℃ | |
Supply Voltage | VCC3 | 0 | 3.6 | V | |
Relative Humidity | RH | 5 | +85 | % | Note1 |
Rx Input Average Power | Pmax | - | +1 | dBm | |







|
