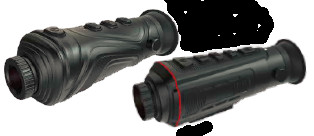

384×288 Infrared Gunsight Thermal Imaging Camera AM3819U

Categories Thermal Camera Module
Brand Name: AOI
Model Number: AM3819U
Place of Origin: China
MOQ: 1 set
Payment Terms: T/T
Delivery Time: 5-8 work days
Model: AM3819U
Display Screen: 440g
Size: 186mm x 69mm x 68mm
Probe Type: Uncooled focal plane
Resolution Ratio: 384×288 infrared focal plane
LCD Resolution: 720×540
Focus Length: 19mm
Eyepiece: Single eyepiece display (the dioptric compensation is adjustable)
Field Angle: 19.5°×14.7°
Digital Zoom: 2X, 4X
Wavelength Coverage: 8μm-14μm
Frame Rate of Thermal Images: 50Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

384×288 Infrared Gunsight Thermal Imaging Camera AM3819U

AM3819U 384×288 Handheld Temperature Measurement Infrared Gunsight Thermal Imaging Camera


Introduction

This product is an outdoor thermal imaging telescope, with an advanced uncooled focal plane infrared detector and high-quality optical lens as the core, combined with a convenient and quick operating system, a compact design, and a fully functional expansion spare part. Long battery life, sturdy and durable, and suitable for various environments. It has created an ideal temperature measurement tool for users with "clear imaging, accurate measurement, simple operation and easy to carry". It is the best tool for on-site inspection, preventive maintenance and other applications. Best choice. This product is used in wild animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security, etc. This product has a camera function, which can be connected to a computer via USB to browse the photos taken, which is convenient for multiple people to observe at the same time, creating possibilities for more applications.


ModelHT-A3HT-A4
Weight440g541.2g
Size186mm x 69mm x 68mm187.3mm x 68mm x 68.2mm
Probe TypeUncooled focal plane
Resolution Ratio384×288 infrared focal plane
LCD Resolution720×540
Focus Length19mm, 25mm, 35mm
EyepieceSingle eyepiece display (the dioptric compensation is adjustable)
Field Angle19.5°×14.7°, 14.9°×11.2°, 10.7°×8°
Digital Zoom2X, 4X
Wavelength Coverage8μm-14μm
Frame Rate of Thermal Images50Hz
Color PaletteRainbow/ Hot metal/ White heat/ Black heat
Focusing ModeAdjustable
Image StorageBMP
BatteryBuilt-in rechargeable batteries
USBMicro USB
Operating Time≥4 hours
Operating Temperature0℃-45℃
Storage Temperature-20℃-60℃
