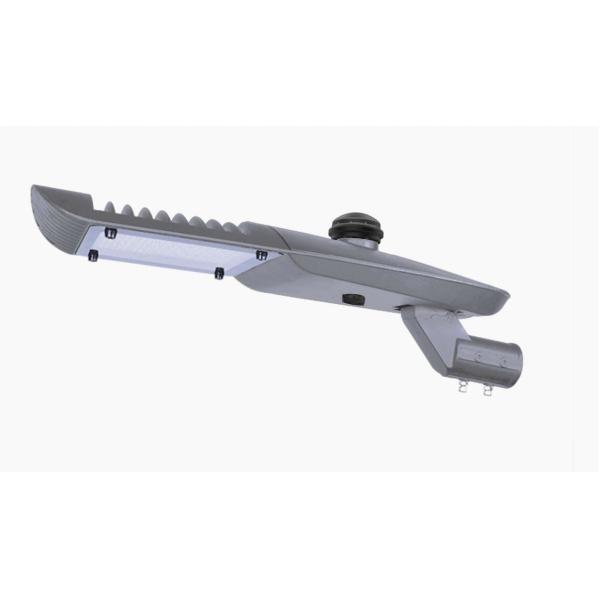

200w 140lm/W Black Led Street Light Die Casting Aluminium High Lumen Power

200w 140lm/W Black Led Street Light Die Casting Aluminium High Lumen Power

200w 140lm/W Black Led Street Light Die Casting Aluminium High Lumen Power
200w 140lm/W Black Led Street Light Die Casting Aluminium High Lumen Power
Categories Outdoor LED Street Lights
Brand Name: Die-casting Man
Model Number: YASL-15-150
Certification: CE, RoHs, ENEC, CB
Place of Origin: CHINA
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Delivery Time: 7-10 days based on order QTY
Packaging Details: 1pc/bag/foam/carton, pallet optional
Power: 100W
Material: Die Casting Aluminium
Color: Customized
LED Lifetime: 50000h
Luminous Flux: 26000-28000lm
Protectin Grade: IP66
Ik: 08
Input voltage: AC90-305V
color rendering index: Ra≥70
Power Factor: PF≥0.95
Packing Size（m m）: 795*331*214
Net Weight: 8.5kgs
Gross Weight: 9.5kgs
Contact Now
Company Info.
NingBo Die-Casting Man Technology Co.,ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

200w 140lm/W Black Led Street Light Die Casting Aluminium High Lumen Power

100W SMD Led Light Fixtures AC90-305V / Waterproof Outdoor Street Light Fixtures


Product Description

*ZHSL-15 family is a high-performance street light available in three size

*ZHSL-15-150 is the large one

*The luminous will be at least 120lm/w

*Product Size:795*331*214mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver


Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens

Technical Datas:
Product CodeYASL-15-150
Input Wattage200W
Color Temperature2700～6500K
Luminous Flux26000-28000lm
Input VoltageAC90～305V
Frequency Range50/60Hz
Power FactorPF≥0.95
color rendering indexRa≥70
Temperature of Working Condition-40～50℃
Humidity of Working Condition20%～90%RH
LED Lifetime50000h
Protectin GradeIP66
Protection levelIK08/09
Installation Pipe Diameterφ45/60mm
Installation Height10-14m
Net Weight8.5kgs
Gross Weight9.5kgs
Packing Size(m m)875*370*130
Drawing picture: lnstalling Ways: Both Horizontal and Vertical available, and adjustable angle-5°to+15°
FAQ Q1. What is your terms of payment? A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment. Q2. What is your terms of delivery? A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you. Q3: What is the lead time? A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made. Q4: How about tooling Charge? A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance. Q5. Can you produce according to the samples or drawings? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q6: How to solve the quality problems after sales? A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems. Q7. What is your terms of packing? A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters. Q8. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards .
