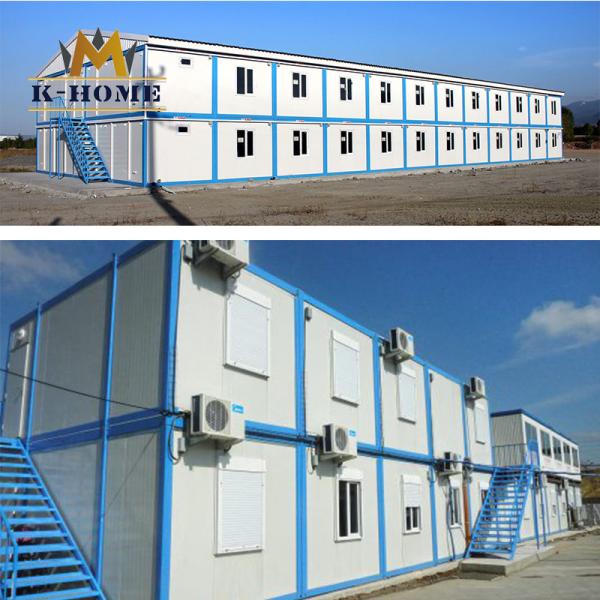

Flat Pack Porta Cabin Living Accommodation

Flat Pack Porta Cabin Living Accommodation

Flat Pack Modular Container is a movable and reusable building.
The product adopts a modular design and uses a container as the basic unit.
It can be used alone, or can be used in a spacious manner through different combinations of horizontal and vertical directions.
The vertical direction can be stacked three floors.
The container unit structure adopts modular-components, and the it is connected by bolts, which has a good seismic-resistant effect

and is convenient and quick to install.

What is flat pack container house?
Flat Pack systems are a modular product and one of the best value priced construction solutions on the market.

They are perfect for worker housing, disaster relief, refugee camps, shops, and many other low-cost temporary building projects.

Are container homes safe?
Structural stability: Containers are also “virtually indestructible”.

Their structural stability makes such homes earthquake and hurricane proof, which makes them extremely

safe for natural disaster-prone areas.

Detail Specification of Flat Pack Porta Cabin

House load:
● Bearing max. load capacity 2.0 kN/m² (200 kg/m²)
● Wind load: 25 m/s (90 km/h)
● Compression capability loading—150kg/m3
● Steel frame:Maximum temperature of structure 500°C

Dimension:
● External Size(mm): 5950(L)×3000(W)×2800(H)
● Internal Size(mm): 5680(L)×2680(W)×2480(H)
Floor:
● 16pcs Galvanzied floor purlins
● 18mm thickness MGO fireproof board (Option cement floor)
● 1.6mm PVC floor leahter

Roof:
● Steel Ceiling
● Insulation: 50mm galss wool insulation material
● 8pcs roof purlins
● 0.5mm thickness steel sheet
● 4pcs water gutters
● 4pcs drainpipes

Wall panels:
● Width: 950mm
● Insulation: 50mm density rockwool sandwich panel
● Both side cladding: 0.4mm PPGI steel sheet, RAL9002

Windows:
● Sliding aluminium profiled windows with dimension 950×1200mm ● Double glazed panes
● Removable mosquito screen

Door:
● Steel door, with dimension 980×2100mm
● Insulation: Paper honeycomb

Painting:
● Steel Frame: Surface spray treated by machine after repeatedly polished

Electricity:
● Light, Switch, Socket, distribution box and breaker,
●Different electrical standards to match with most countries in the world; such as CE, UL, CSA, AS

Henan K-home Steel Structure Co., Ltd is a high-quality container house supplier in China. We are located in Xinxiang, Henan, the birthplace of China's container housing. Relying on the Asian transportation hub and being close to Qingdao Port, this has resulted in convenient transportation and lower transportation costs. We have a complete industrial chain, and container houses in Xinxiang account for more than 70% of China's market share.

Due to decades of rich experience in oversea prefabriacated house construction as well as the accumulation of different national policies, laws, customs, culture and climate which promote the project carrying out smoothly, K-home has been leading Chinese oversea prefabricated house construction and become preferred provider for the well-known large-scale Chinese Construction Enterprises.

Our Main Products covered Sandwich Panels, OEM Prefab House, Container House, Construction Material, Light Steel Structure House, Non-standard Design House, Steel Structure Projects, and Installation Service.
