DH55 R60-5 R55 Swing Driver Gearbox 1.121-00086 For Hydraulic Motor Parts

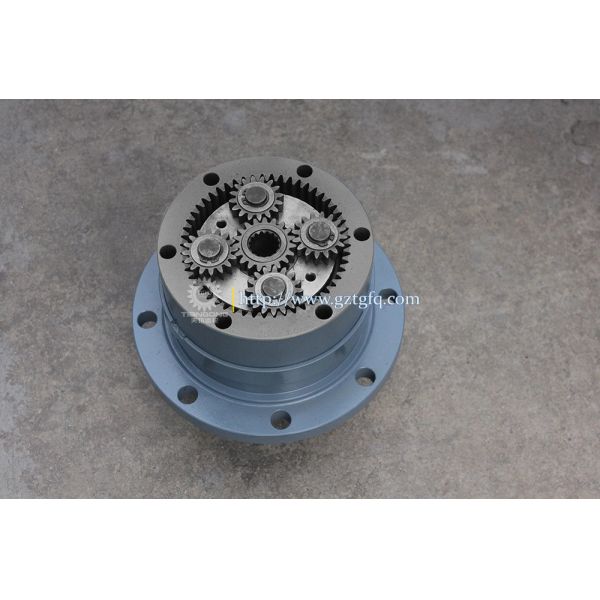

Product Photo:




Drawing:

| Pos. | Part No | Qty | Parts name | Comments |
| -. | 170402-00035 | [1] | GEAR,REDUCTION,TRAVEL | |
| -. | K9005741 | [1] | REDUCTION GEAR | K9005741A |
| -. | K9005741A | [1] | 170402-00035 | |
| 101 | K9005742A | [1] | ||
| 101 | K9005742 | [1] | FLANGE;HOLDER | |
| 102 | K1000470 | [2] | FLOATING SEAL | K1000470C |
| 102 | K1000470C | [2] | SEAL,FLOATING | |
| 103 | 1.121-00086 | [1] | NUT;RING | |
| 104 | 2181-1116D3 | [4] | PLUG;HEX. SOCKET | |
| 105 | K9005743A | [1] | ||
| 105 | K9005743 | [1] | HOUSING | K9005743A |
| 106 | S6250141 | [104] | BALL;STEEL | |
| 107 | 2181-1116D1 | [3] | PLUG | |
| 108 | 1.403-00130A | [4] | ||
| 108 | 1.403-00130 | [4] | GEAR;PLANETARY | 1.403-00130A |
| 109 | 1.114-00516 | [4] | WASHER;THRUST | |
| 110 | 1.120-00065 | [4] | SCREW | |
| 111 | 1.109-00060 | [4] | BEARING;NEEDLE | |
| 112 | 1.114-00004 | [4] | COLLAR | |
| 113 | 1.412-00160 | [1] | PLATE;THRUST | |
| 114 | 1.403-00112A | [1] | ||
| 114 | 1.403-00112 | [1] | GEAR;SUN | 1.403-00112A |
| 115 | S6500480 | [1] | RING;RETAINING | |
| 116 | 110928-00496 | [1] | HOLDER | |
| 116 | 1.429-00017 | [1] | HOLDER | |
| 117 | 1.403-00068A | [3] | ||
| 117 | 1.403-00068 | [3] | GEAR;PLANETARY | 1.403-00068A |
| 118 | 1.109-00059 | [3] | BEARING;NEEDLE | |
| 119 | 1.216-00021A | [3] | RACE;INNER | |
| 120 | S0504666 | [3] | BOLT | |
| 120 | S5740890 | [3] | PIN;SPRING | |
| 121 | 1.405-00029A | [1] | ||
| 121 | 1.405-00029 | [1] | GEAR;DRIVE | 1.405-00029A |
| 122 | 1.412-00161 | [1] | PLATE;THRUST | |
| 123 | 1.430-00041A | [1] | COVER | 1.430-00041B |
| 123 | 1.430-00041B | [1] | COVER | |
| 124 | S2208871 | [12] | BOLT;SOCKET | |
| 125 | 1.109-00006 | [1] | BEARING;ANGULAR | |
| 126 | 2180-1217D147 | [1] | O-RING | |
| 127 | S8002000 | [1] | O-RING | |
| 128 | 2181-1890D3 | [3] | PLUG |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage


FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare
parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production
experience in the excavated gear industry.
|
