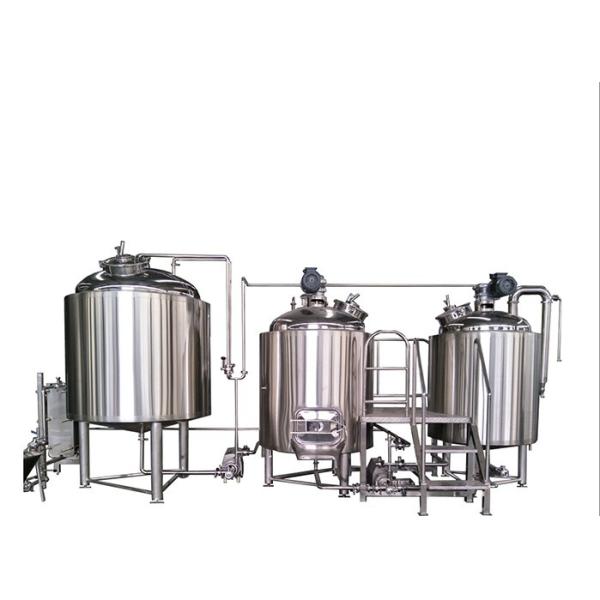

Siemens PLC Control 1000L SUS304 Beer Brewing Equipment

1000liters professional beer brewing equipment, brewery system

Stainless steel beer brewing equipment

MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional: 1- mash/brew kettle, lauter tun/whirlpool

2- mash/brew kettle, lauter tun, whirlpool

3- mash tun, lauter tun, brew kettle/whirlpool

4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1000L brewing system configuration for your reference.

Heating source: electricity, gas fired or steam heating

Material: stainless steel 304 or copper

Warranty: 36 months

Main specifications of brewhouse and fermentation:

Brewhouse system:

1) - interior wall stainless steel 304, 3mm;

- exterior wall stainless steel 304, 2mm

2) - Dome top, top manway with glass

- Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

- with inside CIP washing ball

- agitator

- removable false bottom

- sparging arm, sight glass

- Tangential inlet for whirlpool

- Level tube(optional)

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

- exterior wall stainless steel 304, 2mm

2) - Dome top, conical bottom,

- Top mounted manway

3) - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

- CIP arm

- Bung apparatus

- safety&vacuum va e on top

- sample va e

- rotating racking arm

- thermometer

- dry hops port on top

- carbonation stone (optional)

6) - 100% TIG welding with pure argon gas shield

- Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

- Testing pressure: 3 bar

- working pressure: 1.5-2 bar

Main spare parts:

- Pipe line for brewhouse

- Butterfly va es

- Sight glass

- Measuring cylinder

- Saccharimeter, 0-10&10-20

- Spent grains harrow

- Cooling solenoid va e

- Safety/vacuum va e for fermenters

- Pressure gauge

- Thermometer

- Pipeline for cooling

- Expansion va e for glycol chiller

- Signal wire

- Cable

- Temperaturesensor, PT100

Highlights:

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And also UL standard.

2. Can be customized, such as the capacity(dimension can be customized), material(SUS304/316), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or direct fired heating), etc.

3. The tanks will be surely well welded and polished, and tested before shipment.

OPTIONAL:

Beer bottling line: bottle washing machine, filling machine, capping machine,

pasteurization tank, labelling machine.

Kegs washer and filler.

Beer kegs(10L,20L,30L,50L...).

Steam boiler.

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
