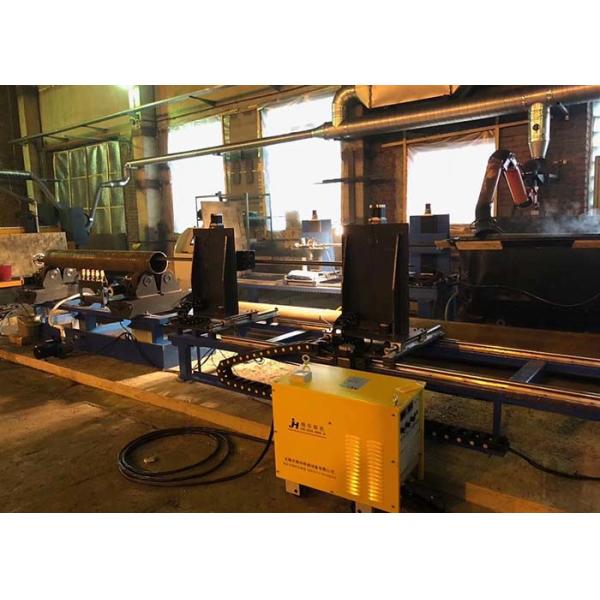

7000mm Min 28.5Kw 8000mm Tube Inner Hardfacing Machine

Tube Cladding Machine, Tube Inner Hardfacing Machine, Tube Inner Surface Overlay Welding Machine


1. Machine Introduction

A high level of automation: any skilled worker can operate the machine independently through a 2-day training program with one - button start and stop function which simplifies the operation of the machine significantly. The weld bead shaping approaches include: Spiral Wing Welding, Spiral Welding and Straight Welding. The allowable diameter for pipe clamping of the machine is assembledfrom 120 mm to 800 mm, and if necessary, a larger pipe diameter may be customized with a maximum welding length of 6 meters. The specialized welding torch and welding cable reduce the resistance of wire feeding, which enables the stable wire feeding of the welding gun at the position of 6th meter on the inner wall of the pipe after feeding by the wire feeder.


2. Machine Parameter

Diameter Range of Overlay WeldingΦ120-1000mm
Maximum Overlay Welding Length8000 mm
Overlay Welding Speed0-250mm /min
Overlay Welding Thickness3-6mm
Allowable Weight2.0T
Maximum Power28.5Kw
Water Cooling Control SystemVariable frequency circulating water cooling
Control SystemThe control system adopts Variable frequency + digital system control
Idle Travel Speed0-7000mm/min
Allowable Material for Overlay WeldingQ235 Q345
Elevation of Overlay Welding Torch0-100mm
Elevating Mode of Overlay Welding TorchManual mechanical lifting
Precision Standard of Whole MachineConforming to JB/T5102-1999
Linear Positioning Accuracy±1mm/5m
Velocity Error±2%

3. Pictures

Bends AngleDegree
Bends Inner Diameter RangeD200-D800
Maximum arc length of Bends1800mm
Bending Radius Rang of BendsR305-R1219
Maximum Workpiece Weight2.0t
Monolayer overlay welding Thickness2.5-5mm
Diameter of Welding Wire1.6-2.8mm

D1MAX
D2800MM
L11500MM
L21200MM
Maximum Workpiece Weight2.0T
Monolayer overlay welding Thickness2.5-5mm
Diameter of Welding Wire1.6-2.8mm
