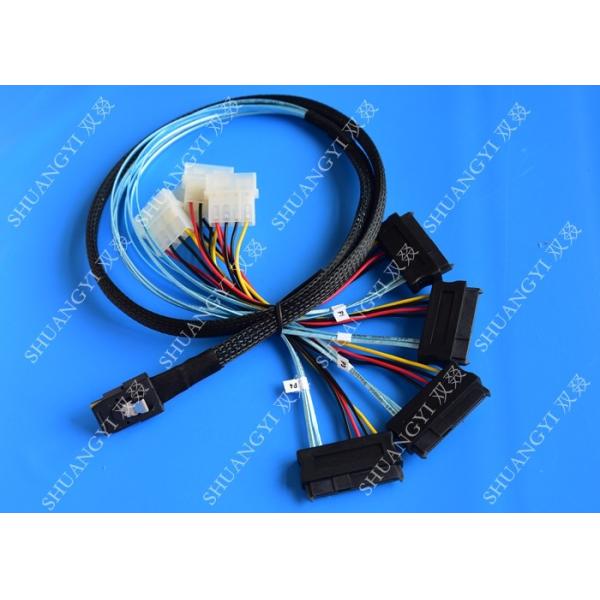

1M Serial Attached SCSI Cable Mini SAS 36-Pin Male To SAS 29-Pin Female Cable

Internal Mini SAS 36-Pin SFF-8087 Male to SAS 29-Pin Female and 4-Pin Power Cable, 1m 28AWG

Detailed Product Description:

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access

Intended primarily for data storage centers the SAS interface is backwards compatible with SATA

This 1 meter long cable uses 28 AWG wires and is intended for external use

Mini SAS 36 (SFF-8087) Male Connect to the HOST/Controller, 4x SAS 29 Connect to the Target/Devices.

4x SAS 29 female with extra 4 pole power. Multiple lanes support current speeds of up to 3.0 Gbps through a single cable.

Point-to-point SCSI makes setting up SCSI easier than ever.

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access.

Cable Length 1.0M

This allows the user to mix more expensive lower-capacity SAS drives for applications that require faster data access and higher reliability with lower-cost higher-capacity SATA drives for applications with lower access speed requirements. Monoprice carries a full line of quality SAS cables with connectors for every possible application both internal and external. This 1 meter long cable uses 28 AWG wires and is intended for internal use. It has a single 36-pin SFF-8087 male Mini-SAS plug on one end and four 29-pin SFF-8482 female SAS plugs each with an attached 4-pin Molex 8981 female drive power plug on the other end. Guide to SAS Connectors Type # of Pins Environment SFF-8087 36 Internal SFF-8088 26 External SFF-8482 29 SFF-8484 32 SFF-8470 34 External (also sometimes internal)
