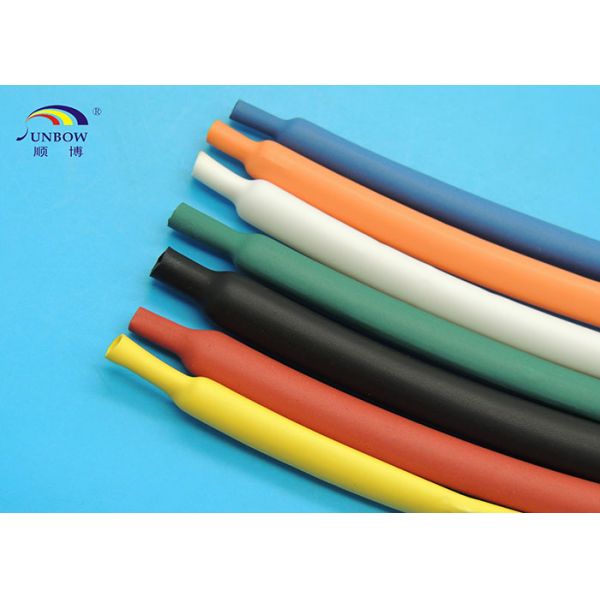

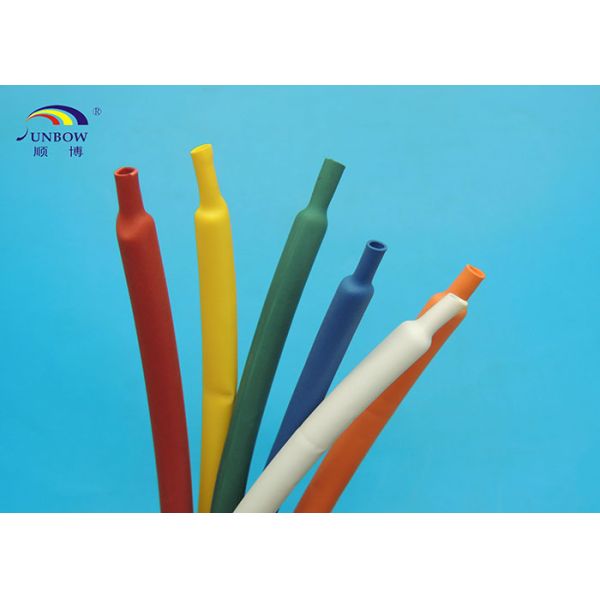

RoHS Compliant Irradiated Flexible Polyolefin Heat Shrink Tubing 13.0mm Black

RoHS Compliant Irradiated Flexible Polyolefin Heat Shrink Tubing 13.0mm Black

Model number: SB-RSFR-H

Working temperature: -45ºC ~ 125ºC

Product description:

RoHS Compliant Irradiated Flexible Heat Shrinkable Polyolefin Tubing 13.0mm Black is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Product application:

RoHS Compliant Irradiated Flexible Heat Shrinkable Polyolefin Tubing 13.0mm Black is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.

Product characteristics:

Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
Shrink ratio: 2:1
Shrink temperature: 84ºC ~ 120ºC

Product technical data:

Property		Unit	Test Method	Standard
Tensile Strength		MPA	≥10.4(Before Aging)	GB/T 1040
			≥7.3(After Aging)	158ºC*168hrs
Breakage Elongation (%)		%	≥200(Before Aging)	GB/T 1040
			≥100(After Aging)	158ºC*168hrs
Heat Shock		-	No Sticking & No Cracking	250ºC*4hrs
Cold Blend		-	No Cracking	-30ºC*4hrs
Breakdown Strength		KV/mm	≥15	GB/T 1408
Dielectric Withstand	600V	-	Pass	No Breakdown for 2500V, 60s
	300V	-	Pass	No Breakdown for 1500V,60s
Volume Resistivity		Ω. cm	≥1×10¹⁴	GB/T 1410
Corrosion Performance		-	pass	158ºC*168hrs
Copper Stability		-	pass	158ºC*168hrs
Flammability		-	pass	VW-1

Physical technical data:

Property	Test Method	Typical Performance
Tensile strength	ASTM D2671	10.4MPa
Elongation(%)	ASTM D2671	200
Tensile strength after heat aging	UL 224 158C*168hrs	≥7.3
Elongation after heat aging	UL 224 158C*168hrs	≥100
Heat shock	UL 224 250C*4hrs	No dripping and no cracking

Electrical technical data:

Property	Test Method	Typical Performance
Dielectric strength	IEC 243	≥15KV/mm
Volume resistivity	IEC 93	≥1*10¹⁴Ω.cm

Chemical technical data:

Property	Test Method	Typical Performance
Corrosion action	UL 224 158C*168hrs	Pass
Copper compatibility	UL 224 158C*168hrs	Pass

Dimension:

Inner Diameter	As Supplied(mm)		After Recovery(mm)		Standard Package	Application Range(mm)
	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness	(m/spool)
Φ0.6	0.9±0.2	0.20±0.05	≤0.40	0.33±0.10	400	0.4~0.7
Φ0.8	1.1±0.2	0.20±0.05	≤0.50	0.33±0.10	400	0.6~0.8
Φ1.0	1.5±0.2	0.20±0.05	≤0.65	0.36±0.10	400	0.75~0.9
Φ1.5	2.0±0.2	0.20±0.05	≤0.85	0.36±0.10	400	0.95~1.4
Φ2.0	2.5±0.2	0.23±0.05	≤1.00	0.45±0.10	400	1.1~1.8
Φ2.5	3.0±0.2	0.23±0.05	≤1.30	0.45±0.10	400	1.35~2.3
Φ3.0	3.5±0.2	0.23±0.05	≤1.50	0.45±0.10	400	1.6~2.7
Φ3.5	4.0±0.2	0.23±0.05	≤1.80	0.45±0.10	400	1.85~3.2
Φ4.0	4.5±0.2	0.25±0.05	≤2.00	0.45±0.10	400	2.1~3.6
Φ4.5	5.0±0.2	0.28±0.05	≤2.30	0.56±0.10	200	2.35~4.0
Φ5.0	5.5±0.2	0.28±0.05	≤2.50	0.56±0.10	200	2.6~4.5
Φ6.0	6.5±0.2	0.28±0.05	≤3.00	0.56±0.10	200	3.1~5.4
Φ7.0	7.5±0.3	0.28±0.05	≤3.50	0.56±0.10	100	3.7~6.3
Φ8.0	8.5±0.3	0.30±0.08	≤4.00	0.56±0.10	100	4.2~7.2
Φ9.0	9.5±0.3	0.30±0.08	≤4.50	0.56±0.10	100	4.7~8.0
Φ10	10.5±0.3	0.30±0.08	≤5.00	0.56±0.10	100	5.2~9.0
Φ11	11.5±0.3	0.30±0.08	≤5.50	0.56±0.10	100	5.7~10
Φ12	12.5±0.3	0.30±0.08	≤6.00	0.56±0.10	100	6.2~11
Φ13	13.5±0.3	0.30±0.08	≤6.50	0.56±0.10	100	6.7~12
Φ14	14.5±0.3	0.35±0.10	≤7.00	0.70±0.10	100	7.3~13
Φ15	15.5±0.4	0.35±0.10	≤7.50	0.70±0.10	100	7.8~14
Φ16	16.5±0.4	0.35±0.10	≤8.00	0.70±0.10	100	8.3~15
Φ17	17.5±0.4	0.35±0.10	≤8.50	0.70±0.10	100	8.8~16
Φ18	19.0±0.5	0.35±0.10	≤9.00	0.70±0.10	100	9.3~17
Φ20	22.0±0.5	0.35±0.10	≤10.00	0.83±0.15	100	10.4~19
Φ22	24.0±0.5	0.40±0.12	≤11.00	0.83±0.15	100	11.4~21
Φ25	26.0±0.5	0.40±0.12	≤12.50	0.90±0.15	50	12.8~24
Φ28	29.0±0.5	0.45±0.12	≤14.00	0.90±0.15	50	14.4~29
Φ30	31.5±1.0	0.45±0.12	≤15.00	1.00±0.15	50	16~29
Φ35	36.5±1.0	0.45±0.12	≤17.50	1.00±0.15	50	18~34
Φ40	41.5±1.0	0.45±0.12	≤20.00	1.00±0.15	50	21~39
Φ45	46.5±1.0	0.50±0.15	≤22.5	1.00±0.15	25	23.5~44
Φ50	≥50	0.50±0.15	≤25.0	1.10±0.15	25	26~49
Φ60	≥60	0.60±0.15	≤30.0	1.20±0.15	25	35~55
Φ70	≥70	0.65±0.15	≤35.0	1.30±0.20	25	40~65
Φ80	≥80	0.65±0.15	≤40.0	1.30±0.20	25	45~75
Φ90	≥90	0.65±0.15	≤45.0	1.30±0.20	25	50~85
Φ100	≥100	0.65±0.20	≤50.0	1.30±0.20	25	55~95
Φ120	≥120	0.65±0.20	≤60.0	1.30±0.20	25	65~115
Φ150	≥150	0.65±0.20	≤70.0	1.30±0.20	25	80~145
Φ180	≥180	0.65±0.30	≤90.0	1.30±0.30	25	95~175
Φ210	≥210	0.65±0.30	≤105.0	1.30±0.30	25	110~205
Φ230	≥230	0.65±0.30	≤115.0	1.30±0.30	25	120~225
Φ250	≥250	0.65±0.30	≤125.0	1.30±0.30	25	130~240

Color: Standard color is black (other color available upon request).

RoHS Compliant Irradiated Flexible Heat Shrinkable Polyolefin Tubing 13.0mm Black

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Sunbow Insulation Materials MFG. CO., LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Polyolefin Heat Shrink Tubing
Brand Name:	Sunbow
Model Number:	SB-RSFR-H
Certification:	UL(UL No.: E360625), RoHS, Reach, ISO9001:2008, TS16949
Place of Origin:	Shenzhen 518106, Guangdong, China
MOQ:	2000 meter
Price:	US$0.113/M - US$0.149/M
Payment Terms:	T/T, PayPal, L/C, D/A, D/P, West Union, MoneyGram
Supply Ability:	9000000 meter/year
Packaging Details:	Sunbow Standard Package.
Product name:	RoHS Compliant Irradiated Flexible Heat Shrinkable Polyolefin Tubing 13.0mm Black
Working temperature:	-45C - 125C
Shrink temperature:	84C - 120C
Shrink ratio:	2:1
Size:	0.5mm - 280.0mm
Color:	Black, red, yellow, green, blue, transparent
Property:	Insulation, flame retardant, flexible, eco-friendly
Application:	Wiring harness, cables, heating elements, switchgear
